308.0150.00 TN35
Inserts
Part number 308015000TN35
HORN Inserts 308.0150.00 TN35 for Milling
Please note:Technical instructions

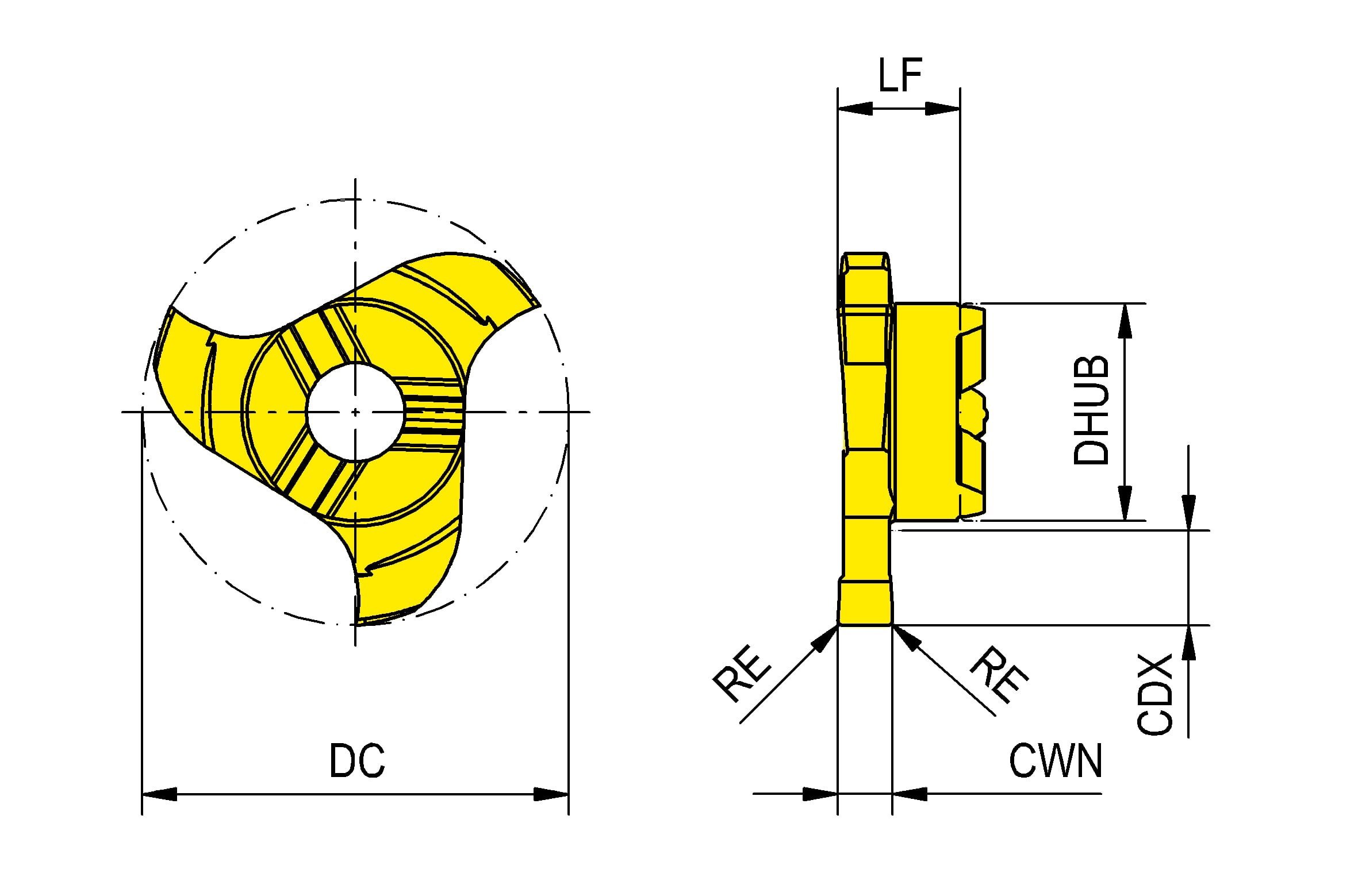

Cutting width minimum (CWN)
1.51 mm
Functional length (LF)
4.5 mm
hub diameter (DHUB)
8 mm
Cutting diameter (DC)
15.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 308_0150_00_TN35-ISO.XML | Download |
| 308_0150_00_TN35-DIN.XML | Download |
| 308_0150_00_TN35-DXF.DXF | Download |
| 308_0150_00_TN35-STP.STP | Download |
| Download all files | |
