308.0160.00 AS45
Insert
Part number 308016000AS45

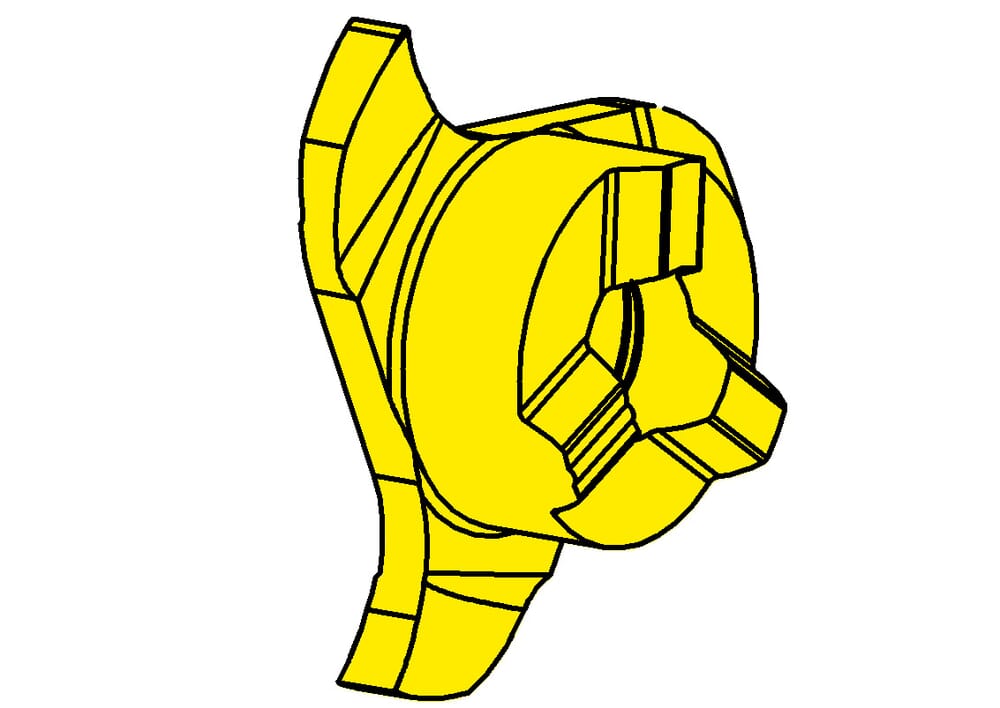

HORN Insert 308.0160.00 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
1.71
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Nominal range (Nw)
1.6
mm
Cutting insert thickness, setting length complete (s)
4.5
mm
Downloads | |
---|---|
308016000_20230112_141116606.STP | Download |
308016000_20210629_103609145.DXF | Download |
Download all files |
