308.0160.00 TF45
Insert
Part number 308016000TF45
HORN Insert 308.0160.00 TF45 for Milling
Please note:Technical instructions

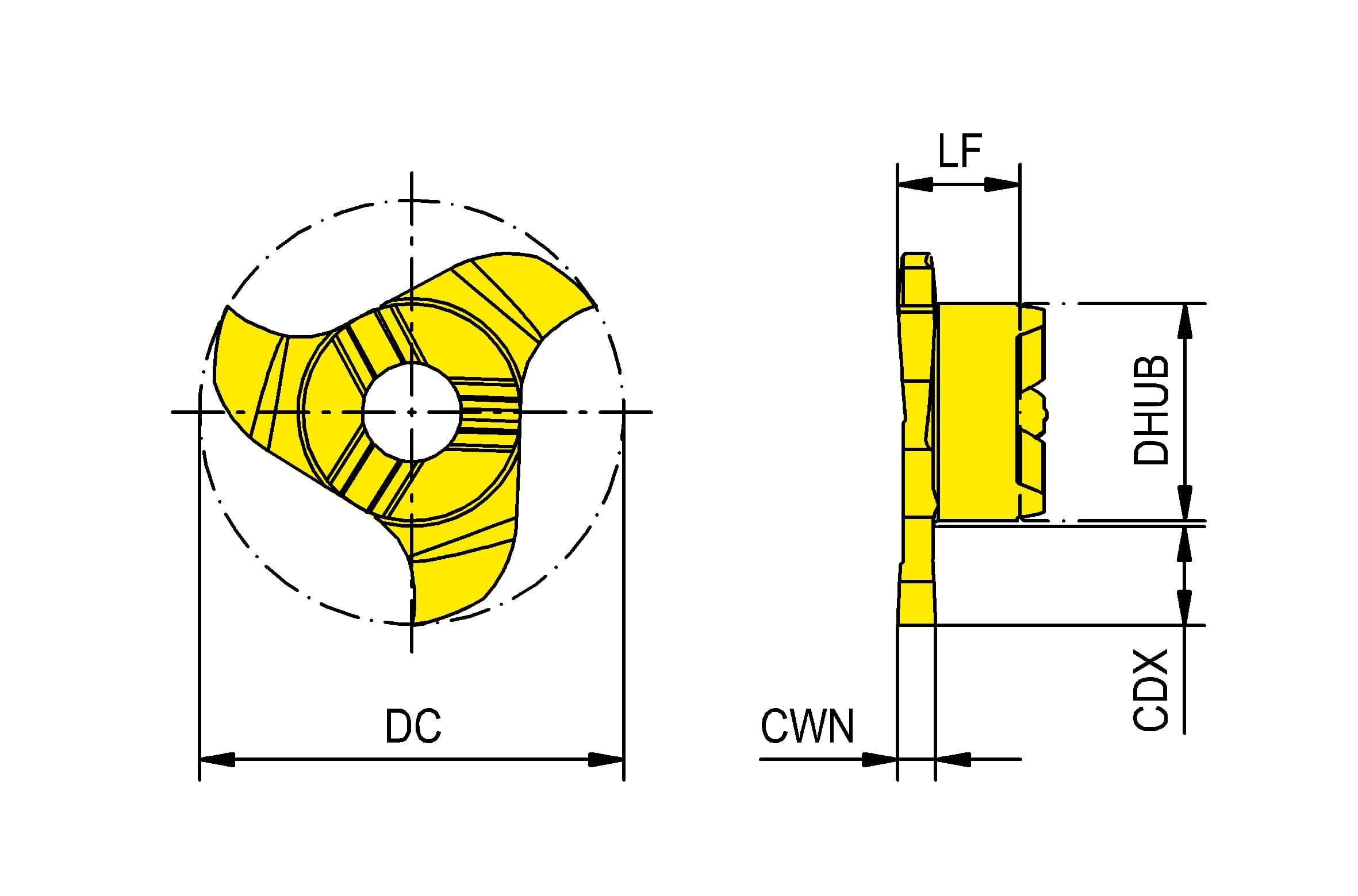

Wide retaining ring (RTRG)
1.6 mm
Cutting width minimum (CWN)
1.7 mm
Functional length (LF)
4.5 mm
hub diameter (DHUB)
8 mm
Cutting diameter (DC)
15.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 308_0160_00_TF45-ISO.XML | Download |
| 308_0160_00_TF45-STP.STP | Download |
| 308_0160_00_TF45-DXF.DXF | Download |
| 308_0160_00_TF45-DIN.XML | Download |
| Download all files | |
