308.0160.40 TI25
Insert
Part number 308016040TI25
HORN Insert 308.0160.40 TI25 for Milling
Please note:Technical instructions

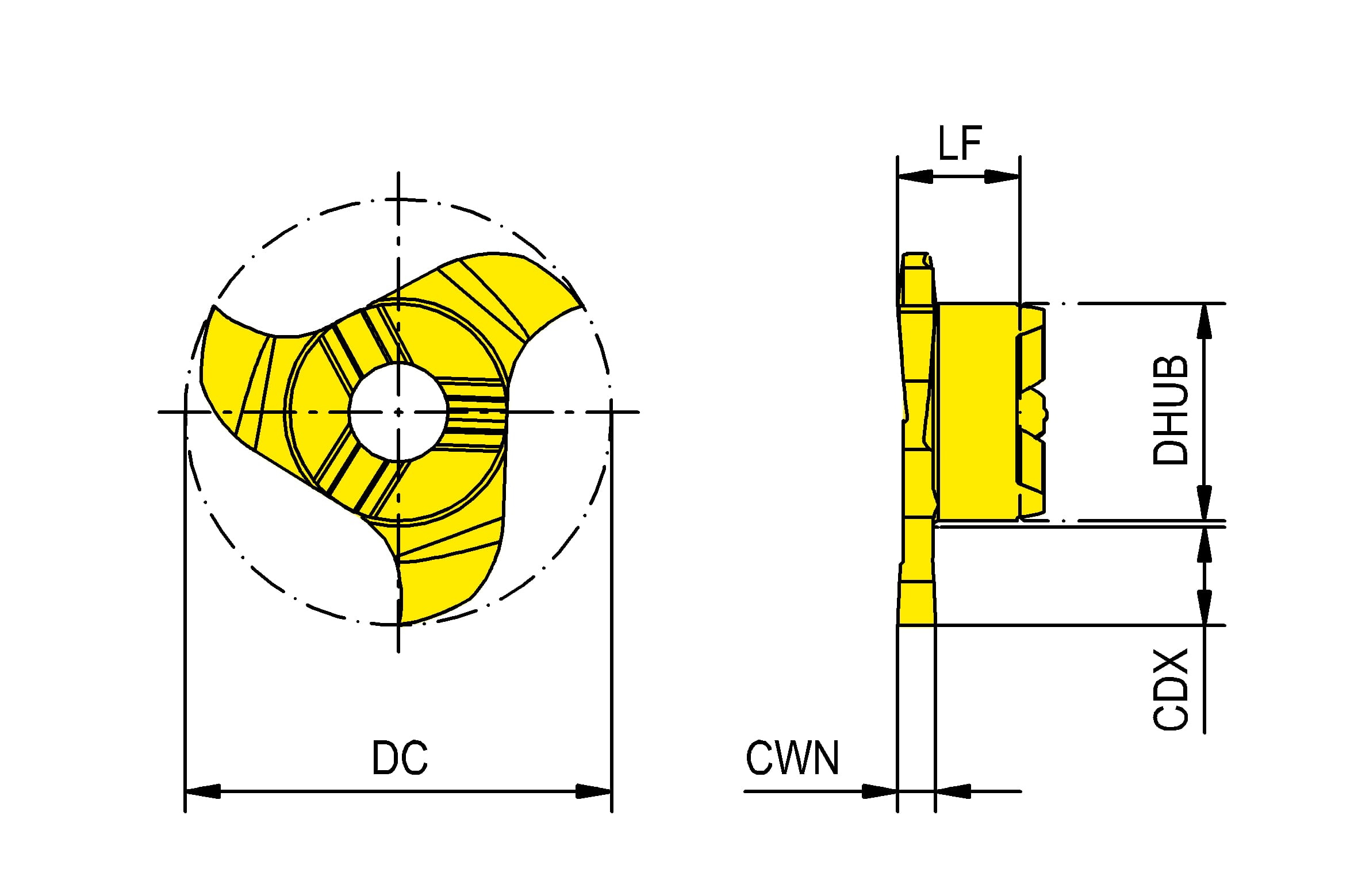

Breite Sicherungsring (RTRG)
1.6 mm
Schnittbreite minimum (CWN)
1.7 mm
Funktionslänge (LF)
4.5 mm
Nabendurchmesser (DHUB)
8 mm
Schneidendurchmesser (DC)
15.7 mm
Schnitttiefe, max. (CDX)
3.5 mm
| Downloads | |
|---|---|
| 308_0160_40_TI25-DXF.DXF | Download |
| 308_0160_40_TI25-STP.STP | Download |
| 308_0160_40_TI25-DIN.XML | Download |
| 308_0160_40_TI25-ISO.XML | Download |
| Download all files | |
