311.0015.30 AS45
Insert
Part number 311001530AS45

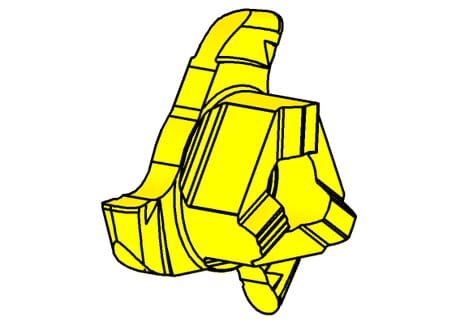

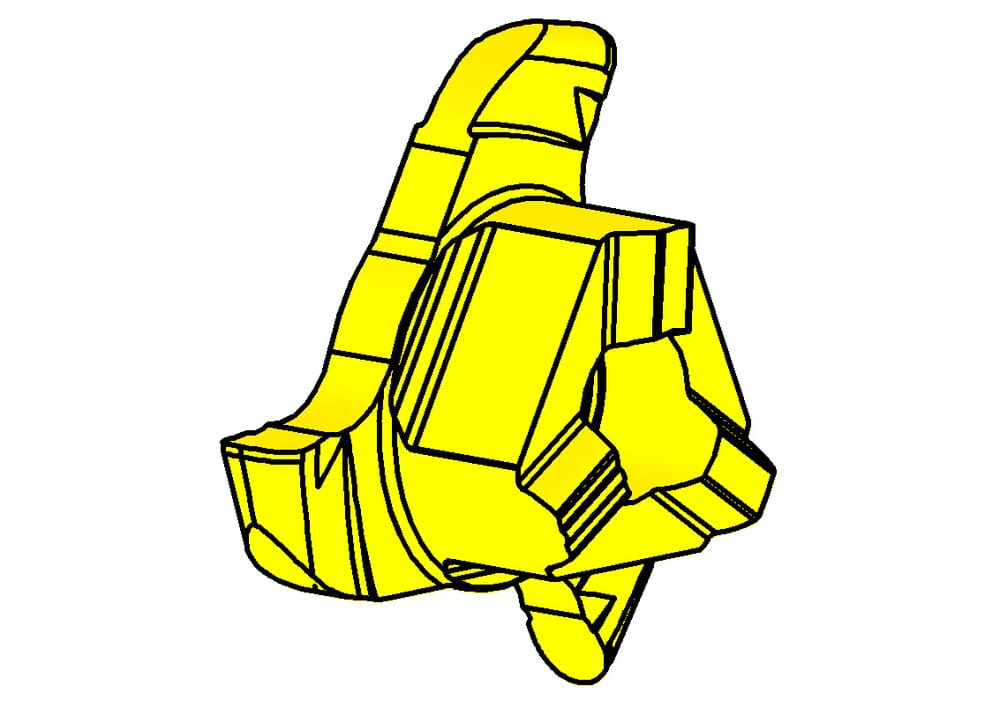

HORN Insert 311.0015.30 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Width of groove (w)
3
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Cutting insert thickness, setting length complete (s)
5.75
mm
Radius, full-radius (r)
1.5
mm
| Downloads | |
|---|---|
| 311001530_20210630_110850476.STP | Download |
| 311001530.DXF | Download |
| Download all files | |
