311.0815.02 TN35
Inserts
Part number 311081502TN35

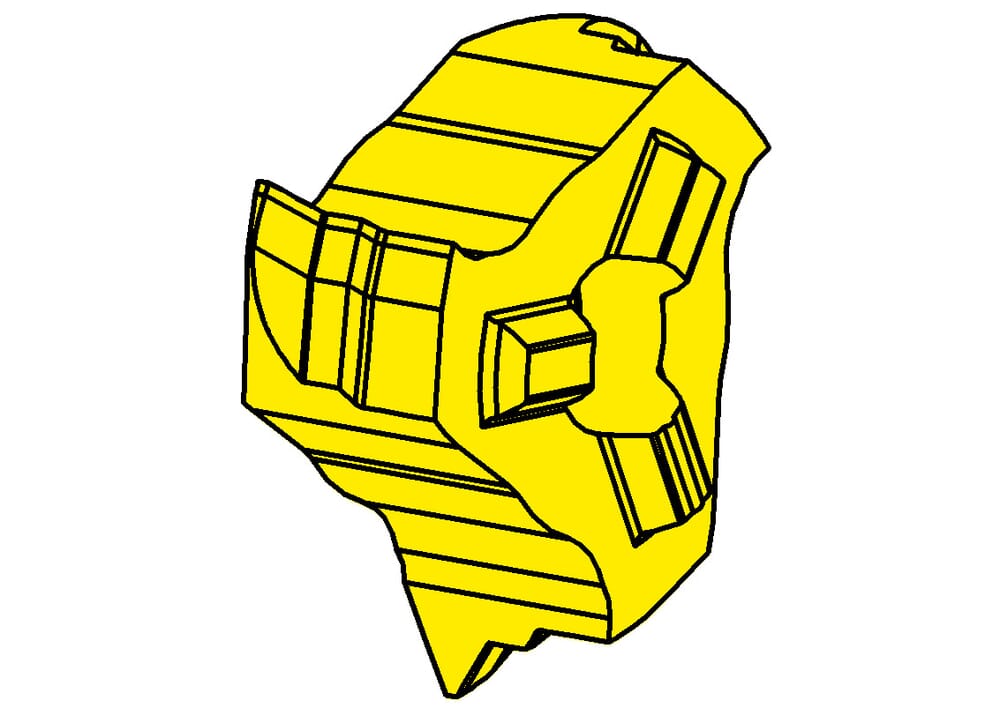

HORN Inserts 311.0815.02 TN35 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
number-of-teeth
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Setting length (E)
4.8
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
Pitch (P)
1.5
mm
| Downloads | |
|---|---|
| 311_0815_02_TN35-DXF.DXF | Download |
| 311_0815_02_TN35-STP.STP | Download |
| 311_0815_02_TN35-DIN.XML | Download |
| Download all files | |
