311.0815.02 TN35
Inserts
Part number 311081502TN35
HORN Inserts 311.0815.02 TN35 for Gewinden

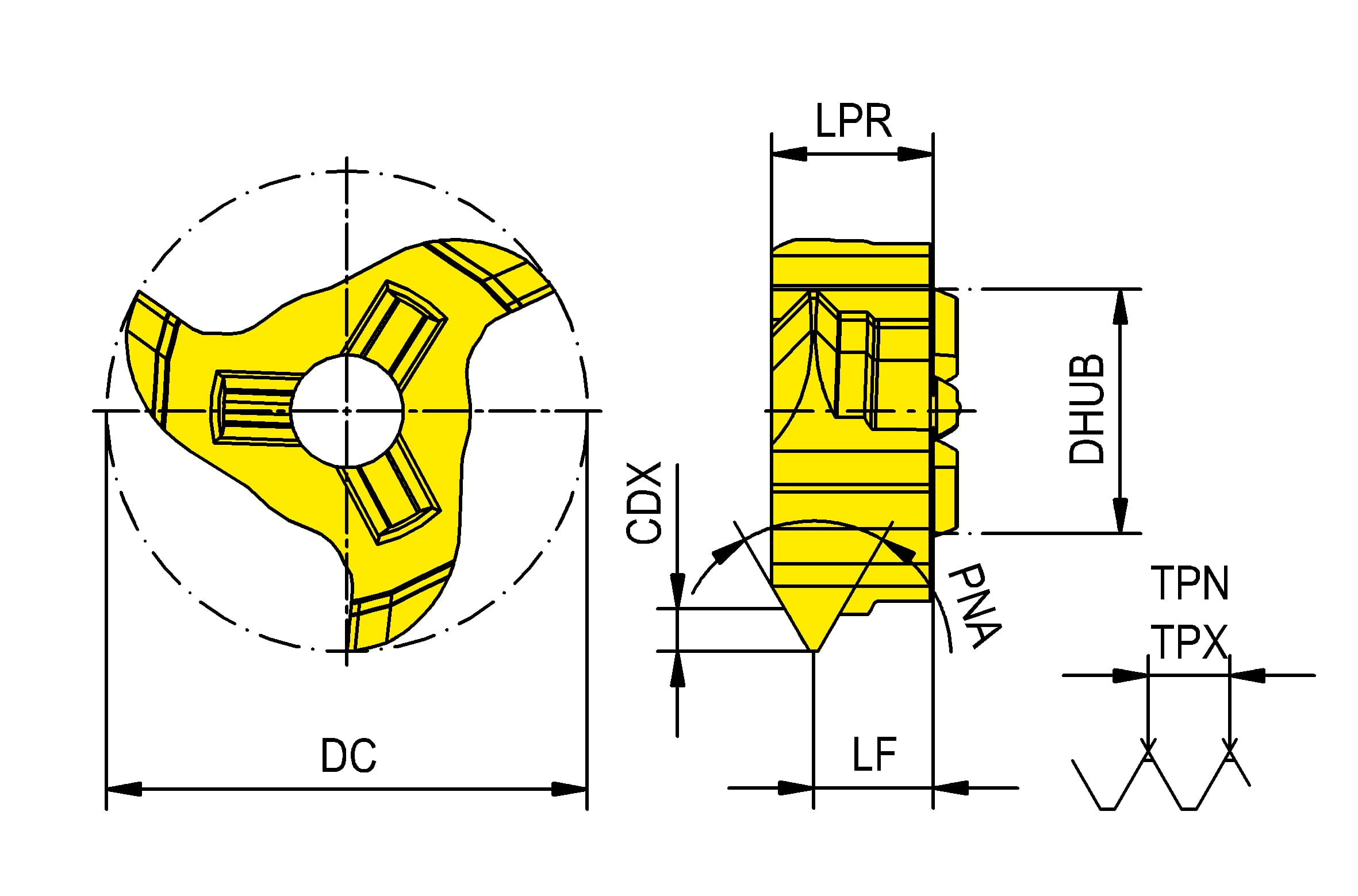

Please note:Technical instructions
Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
1.5 mm
Thread pitch minimum (TPN)
1.5 mm
Protruding length (LPR)
5.95 mm
Functional length (LF)
4.8 mm
hub diameter (DHUB)
9 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
0.82 mm
