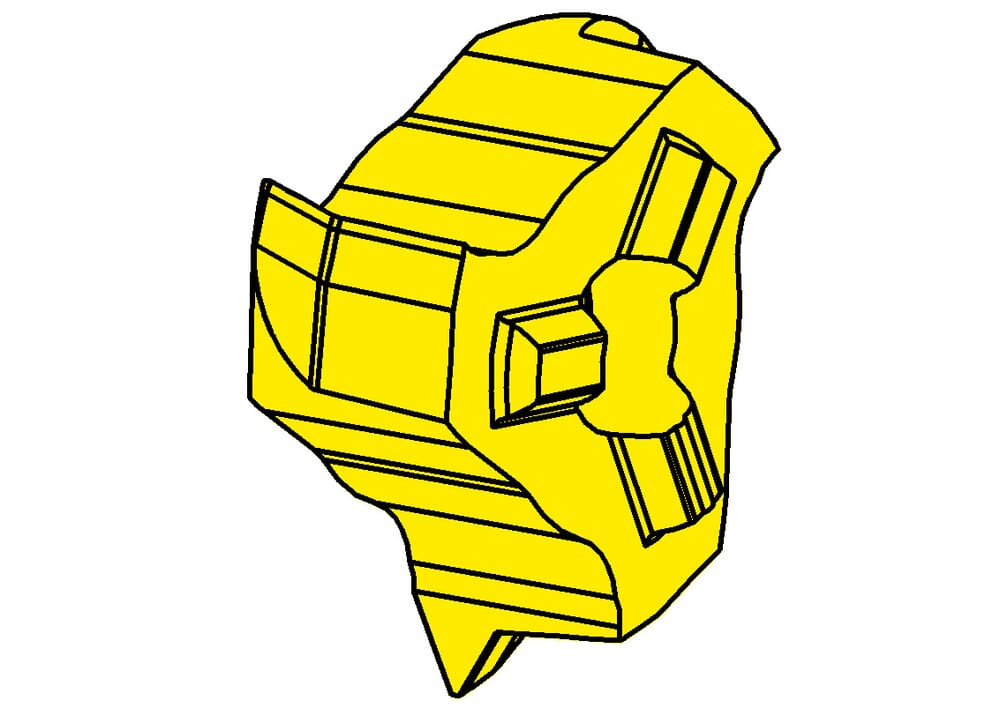

311.1835.01 TN35
Inserts
Part number 311183501TN35
HORN Inserts 311.1835.01 TN35 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Setting length (E)
4.1
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
Pitch (P)
3.5
mm
Maximum pitch (Pmax)
3.5
mm
| Downloads | |
|---|---|
| 311_1835_01_TN35-ISO.XML | Download |
| 311_1835_01_TN35-DXF.DXF | Download |
| 311_1835_01_TN35-STP.STP | Download |
| 311_1835_01_TN35-DIN.XML | Download |
| Download all files | |
