311.5514.02 TN35
insert
Part number 311551402TN35

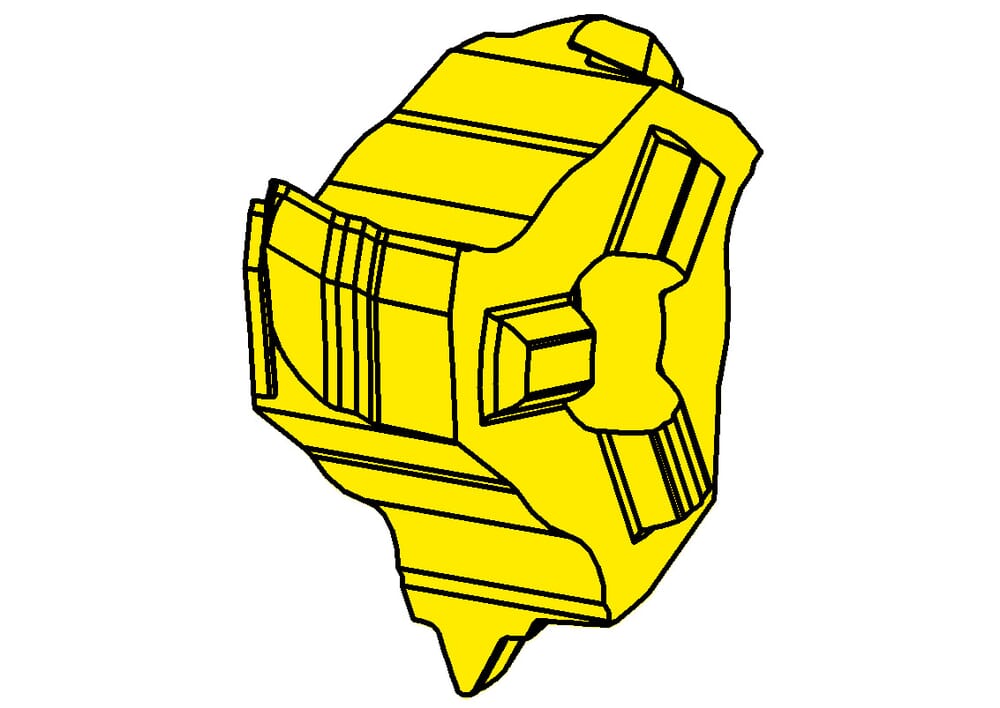

HORN insert 311.5514.02 TN35 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
3
St.
Threads per inch (TPI)
14
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Setting length (E)
4.35
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
| Downloads | |
|---|---|
| 311_5514_02_TN35-ISO.XML | Download |
| 311_5514_02_TN35-DXF.DXF | Download |
| 311_5514_02_TN35-STP.STP | Download |
| 311_5514_02_TN35-DIN.XML | Download |
| Download all files | |
