312.0015.30 K10
Inserts
Part number 312001530K10

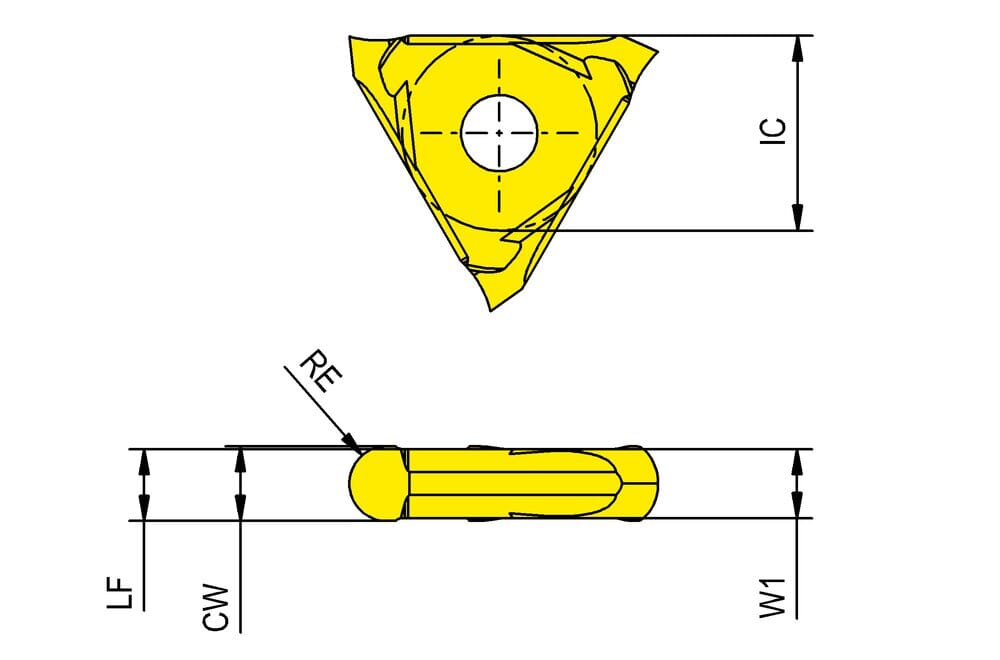

HORN Inserts 312.0015.30 K10 for Turning
Please note:Technical instructions
Cancellation (a1)
0.2 mm
Free-throw width (t1)
1 mm
Full radius (r1)
1.5 mm
eclass-shortcut
21-18-20-01
Smallest workpiece diameter (Dmin)
27 mm
ISO_SSC
HORN-31202$000N$$$$$
Katalog_SSC
31202N
Plating seat size (Größe)
2
Width of groove (w)
3 mm
| Downloads | |
|---|---|
| 312_0015_30_K10-DXF.DXF | Download |
| 312_0015_30_K10-STP.STP | Download |
| 312_0015_30_K10-ISO.XML | Download |
| 312_0015_30_K10-DIN.XML | Download |
| Download all files | |
