312.0025.50 P20
Inserts
Part number 312002550P20

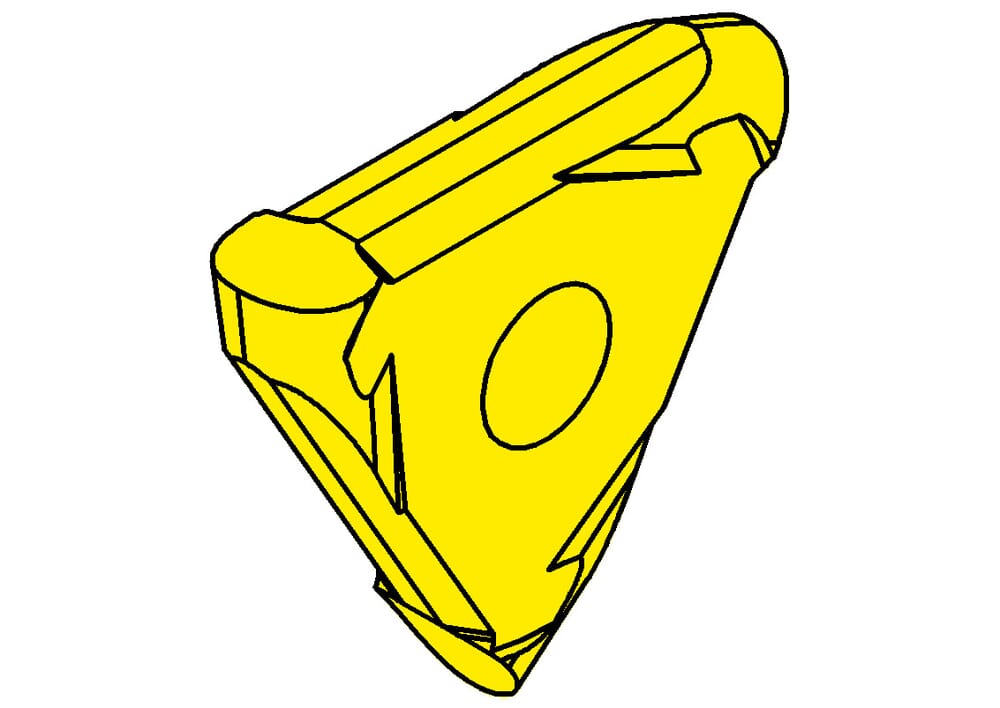

HORN Inserts 312.0025.50 P20 for Turning
Please note:Technical instructions
Cancellation (a1)
0.2 mm
Free-throw width (t1)
1.5 mm
Full radius (r1)
2.5 mm
Smallest workpiece diameter (Dmin)
35 mm
ISO_SSC
HORN-31204$000N$$$$$
Katalog_SSC
31204N
Plating seat size (Größe)
4
Width of groove (w)
5 mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| 312_0025_50_P20-DXF.DXF | Download |
| 312_0025_50_P20-STP.STP | Download |
| 312_0025_50_P20-ISO.XML | Download |
| 312_0025_50_P20-DIN.XML | Download |
| Download all files | |
