312.0070.00 TN32
Inserts
Part number 312007000TN32
HORN Inserts 312.0070.00 TN32 for Turning
Please note:Technical instructions

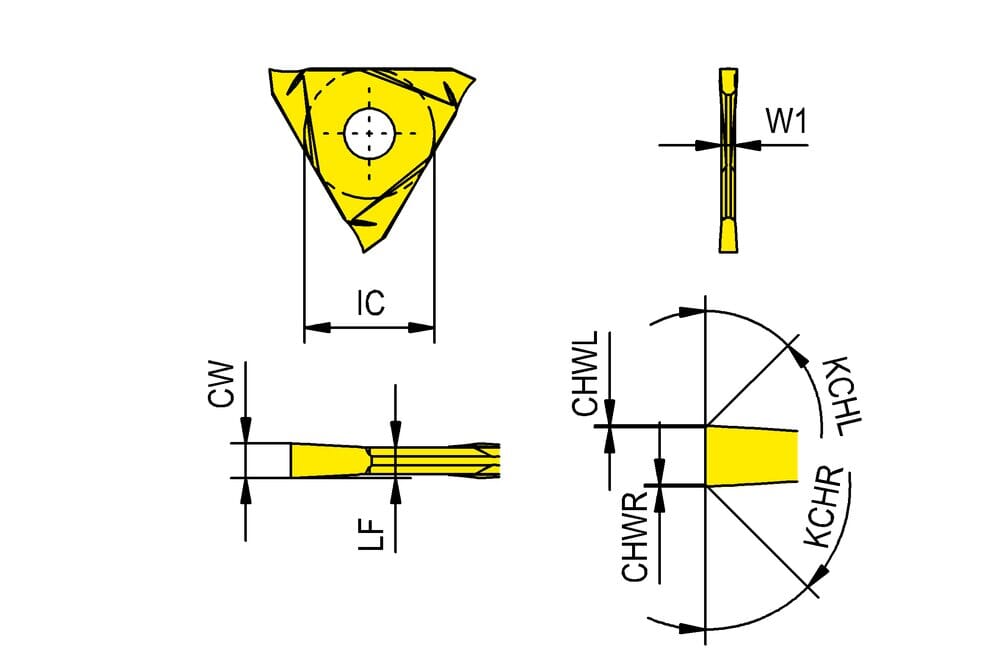

Wide retaining ring (RTRG)
0.7 mm
inscribed circle diameter (IC)
13 mm
insert width (W1)
0.6 mm
Functional length (LF)
0.68 mm
Cutting width (CW)
0.76 mm
| Downloads | |
|---|---|
| 312_0070_00_TN32-STP.STP | Download |
| 312_0070_00_TN32-ISO.XML | Download |
| 312_0070_00_TN32-DIN.XML | Download |
| 312_0070_00_TN32-DXF.DXF | Download |
| Download all files | |
