312.0130.00 TN32
Inserts
Part number 312013000TN32
HORN Inserts 312.0130.00 TN32 for Turning
Please note:Technical instructions

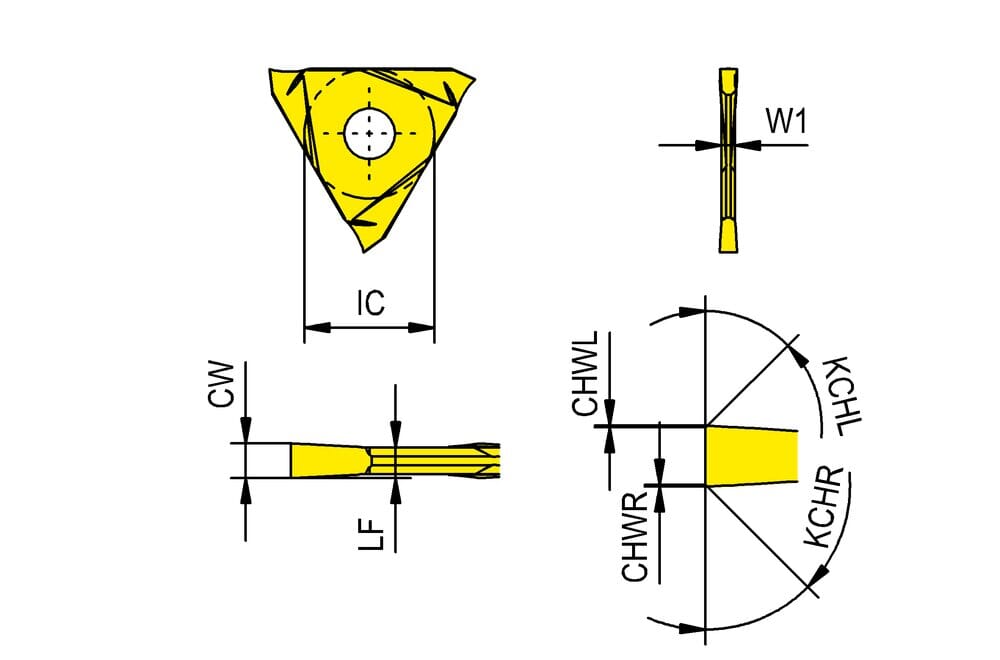

Wide retaining ring (RTRG)
1.3 mm
Corner chamfer angle right hand (KCHR)
45 °
Corner chamfer angle left hand (KCHL)
45 °
Corner chamfer width right hand (CHWR)
0.05 mm
Corner chamfer width left hand (CHWL)
0.05 mm
inscribed circle diameter (IC)
13 mm
insert width (W1)
1.03 mm
Functional length (LF)
1.23 mm
Cutting width (CW)
1.43 mm
| Downloads | |
|---|---|
| 312_0130_00_TN32-ISO.XML | Download |
| 312_0130_00_TN32-DIN.XML | Download |
| 312_0130_00_TN32-DXF.DXF | Download |
| 312_0130_00_TN32-STP.STP | Download |
| Download all files | |
