312.0185.00 K10
Inserts
Part number 312018500K10
HORN Inserts 312.0185.00 K10 for Turning
Please note:Technical instructions

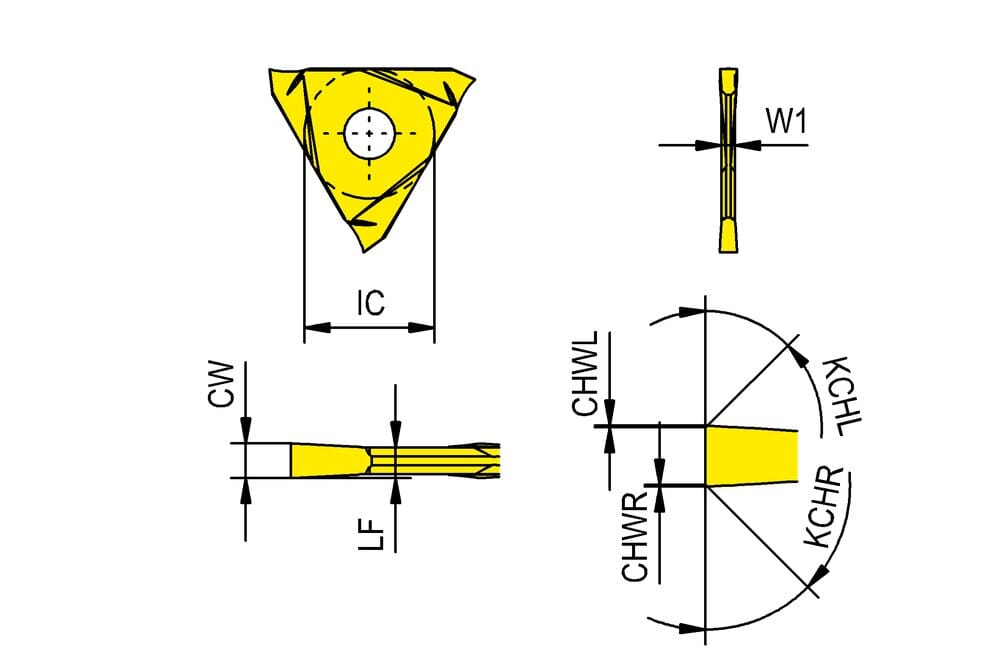

Wide retaining ring (RTRG)
1.85 mm
Corner chamfer angle right hand (KCHR)
45 °
Corner chamfer angle left hand (KCHL)
45 °
Corner chamfer width right hand (CHWR)
0.05 mm
Corner chamfer width left hand (CHWL)
0.05 mm
inscribed circle diameter (IC)
13 mm
insert width (W1)
1.58 mm
Functional length (LF)
1.78 mm
Cutting width (CW)
1.98 mm
| Downloads | |
|---|---|
| 312_0185_00_K10-STP.STP | Download |
| 312_0185_00_K10-ISO.XML | Download |
| 312_0185_00_K10-DIN.XML | Download |
| 312_0185_00_K10-DXF.DXF | Download |
| Download all files | |
