313.0015.30 TN35
Insert
Part number 313001530TN35

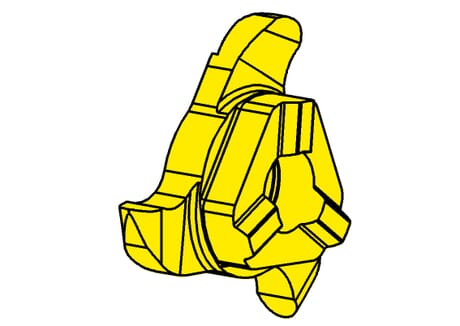

HORN Insert 313.0015.30 TN35 for Milling
Please note:Technical instructions
Radius, full-radius (r)
1.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Width of groove (w)
3
mm
plating-seat-size
0
Katalog_SSC
313113R
DIN_SSC
HORN31311384R
ISO_SSC
HORN313113$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 313001530_20210630_102900144.STP | Download |
| 313001530_20210625_145439111.DXF | Download |
| Download all files | |
