332.0350.00 AS45
Insert
Part number 332035000AS45

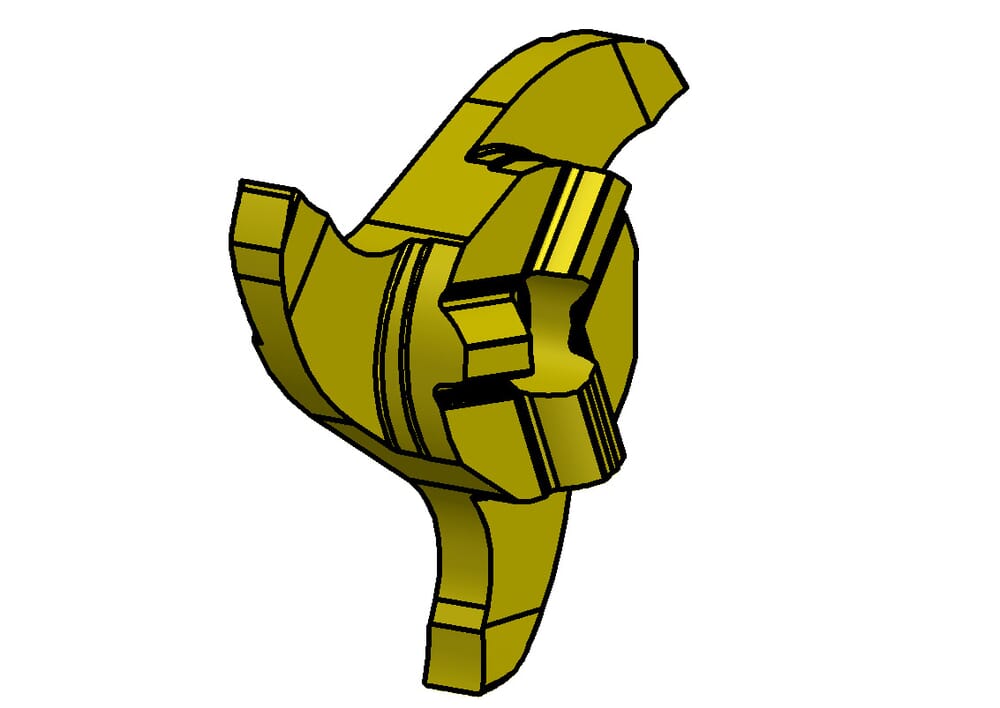

HORN Insert 332.0350.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
8.3
mm
Width of groove (w)
3.5
mm
plating-seat-size
0
Katalog_SSC
332143R
DIN_SSC
HORN33214384R
ISO_SSC
HORN332143$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
31.7
mm
| Downloads | |
|---|---|
| 332035000_20230112_143949445.STP | Download |
| 332035000_20210627_174137451.DXF | Download |
| Download all files | |
