335.0500.00 AS45
Insert
Part number 335050000AS45

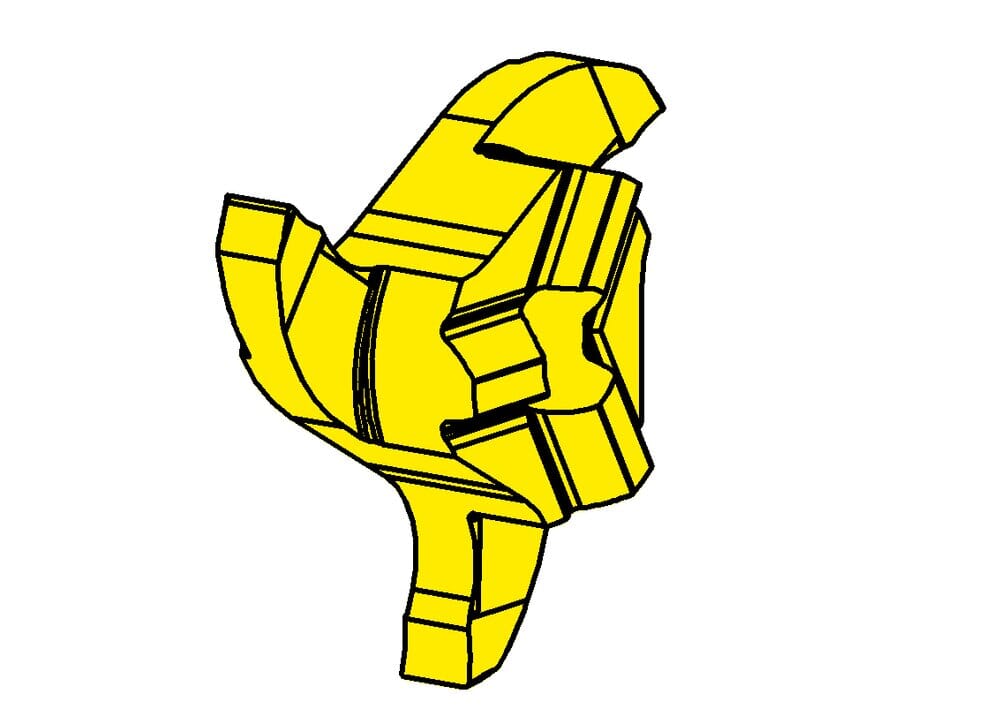

HORN Insert 335.0500.00 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
34.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN335175$84R$$$$$
DIN_SSC
HORN33517584R
Katalog_SSC
335175R
plating-seat-size
0
Width of groove (a)
5
mm
Maximum milling depth/ depth of groove (tmax)
8
mm
Cutting insert thickness, setting length complete (s)
8.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 335_0500_00_AS45-STP.STP | Download |
| 335_0500_00_AS45-DXF.DXF | Download |
| 335_0500_00_AS45-DIN.XML | Download |
| Download all files | |
