383.0200.40.08
Disk milling cutter
Part number 38302004008
HORN Disk milling cutter 383.0200.40.08 for Milling

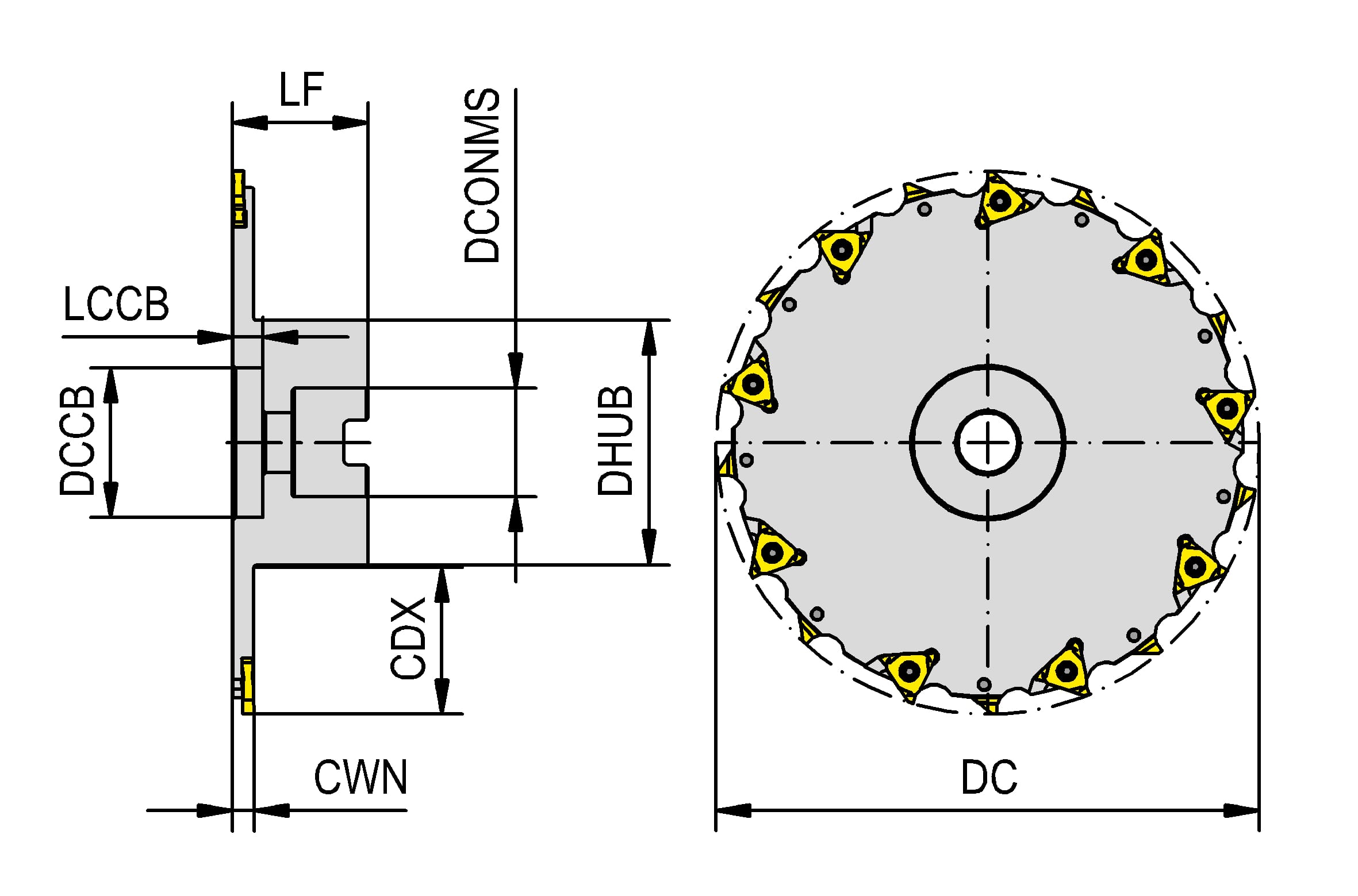

Please note:Technical instructions
DIN_CCTWS
HORN-314041101R;HORN-314041101L
Diameter of the mandrel (d2)
90
mm
Diameter facing system for disk cutters (d3)
40
mm
Left hand indexable insert (linke WSP)
9x L314...
Right hand indexable insert (rechte WSP)
9x R314...
Cutting width maximum (w)
8
mm
Miller length with indexable insert (h)
50
mm
Maximum milling depth (tmax)
54
mm
ISO_CCTMS
FDA01G4000$$$$
DIN_CCTMS
FDA04000100
Katalog_CCTWS
314041R;314041L
ISO_CCTWS
HORN314041101R$$$$$;HORN314041101L$$$$$
eclass-shortcut
21-18-09-06
Number of teeth (Z)
9
St.
Cutting diameter (Ds)
200
mm
Downloads | |
---|---|
383_0200_40_08_20180321_144005902.STP | Download |
383_0200_40_08_20180321_144001933.DXF | Download |
Download all files |
