606.0250.00 AS45
Insert
Part number 606025000AS45

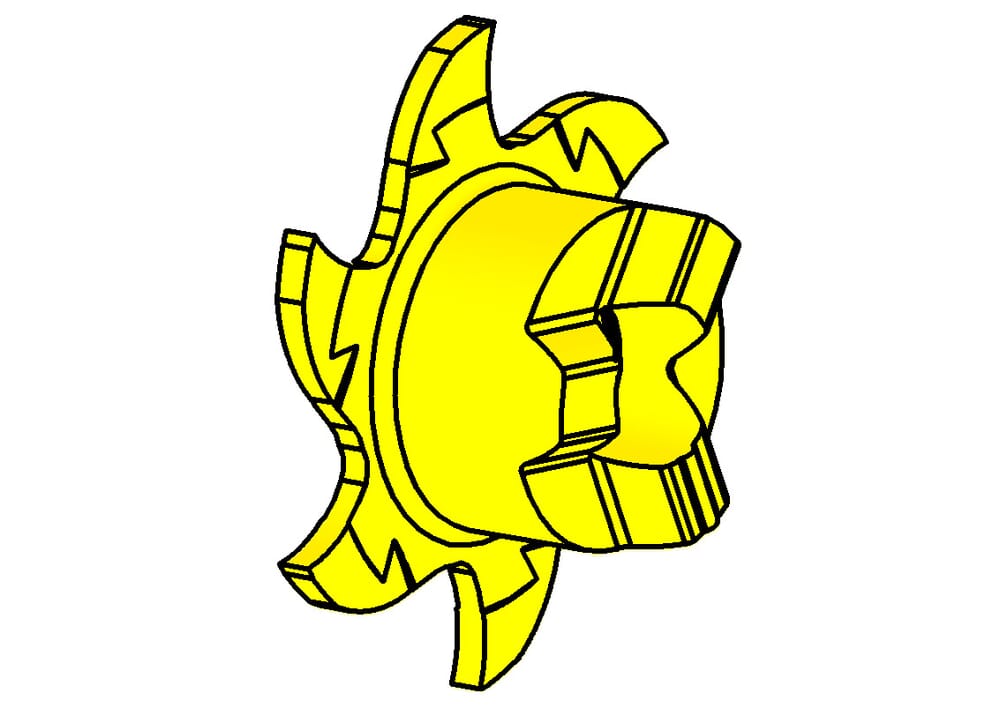

HORN Insert 606.0250.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
3.5
mm
Maximum milling depth/ depth of groove (tmax)
2.5
mm
Width of groove (w)
2.5
mm
plating-seat-size
0
Katalog_SSC
306060R
DIN_SSC
HORN-30606084R
ISO_SSC
HORN306060$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
11.7
mm
| Downloads | |
|---|---|
| 606025000_20230112_135620744.STP | Download |
| 606025000_20210629_202942688.DXF | Download |
| Download all files | |
