606.1015.35 EG55

Insert

Part number 606101535EG55

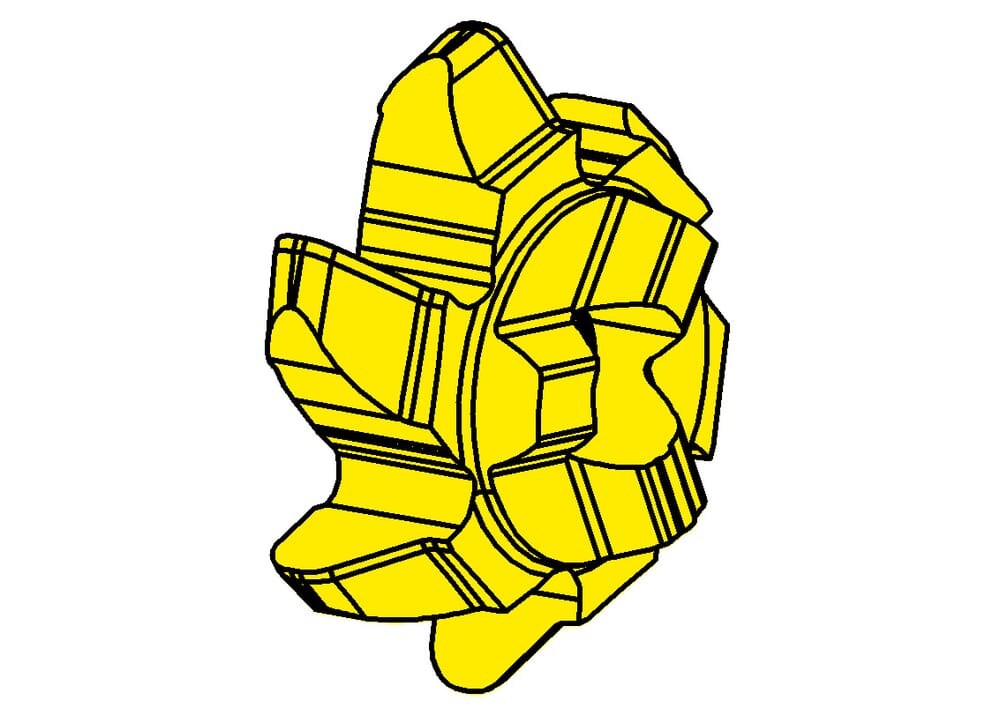

HORN Insert 606.1015.35 EG55 for Milling

Cutting diameter (Ds)

11.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN306060$84R$$$$$

Katalog_SSC

306060R

Width of groove (w)

1.2 mm

Maximum milling depth/ depth of groove (tmax)

1.15 mm

Cutting insert thickness, setting length complete (s)

3.5 mm

Corner radius (r)

0.7 mm
