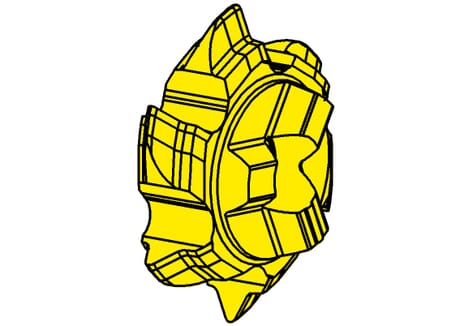

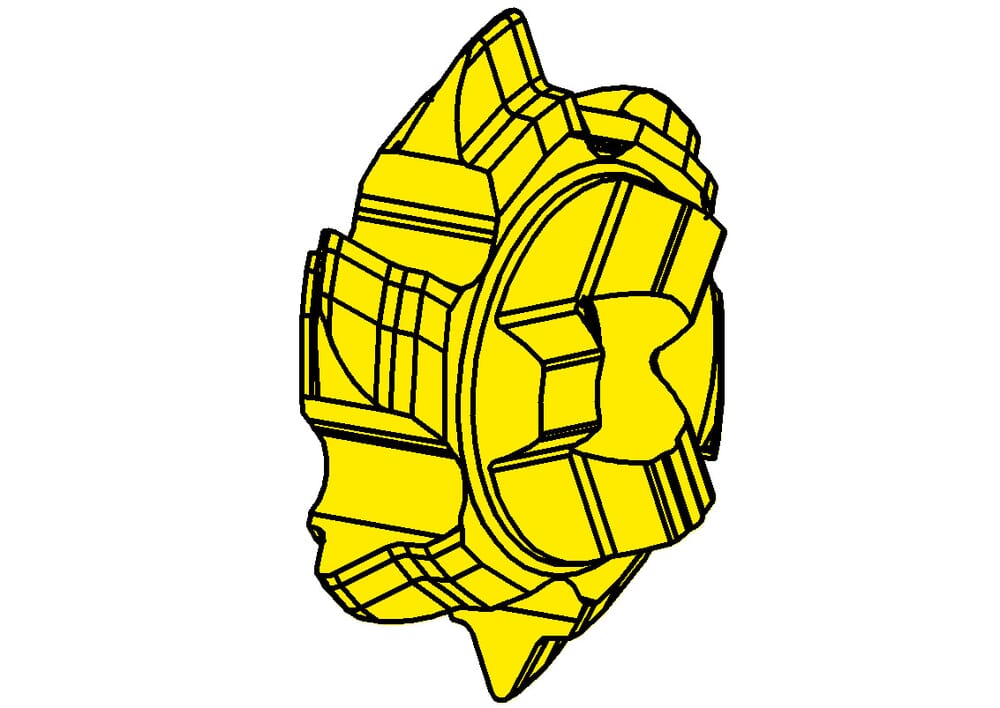

606.5519.10.02 AS45
Insert
Part number 60655191002AS45
HORN Insert 606.5519.10.02 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
9.7
mm
number-of-teeth
6
St.
Threads per inch (TPI)
19
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Setting length (E)
2.1
mm
Cutting insert height, Cutting insert thickness (s)
3.3
mm
| Downloads | |
|---|---|
| 606_5519_10_02_AS45-DXF.DXF | Download |
| 606_5519_10_02_AS45-DIN.XML | Download |
| 606_5519_10_02_AS45-STP.STP | Download |
| 606_5519_10_02_AS45-ISO.XML | Download |
| Download all files | |
