608.0090.00 EG35
insert
Part number 608009000EG35

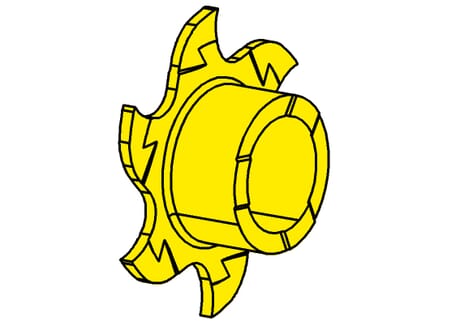

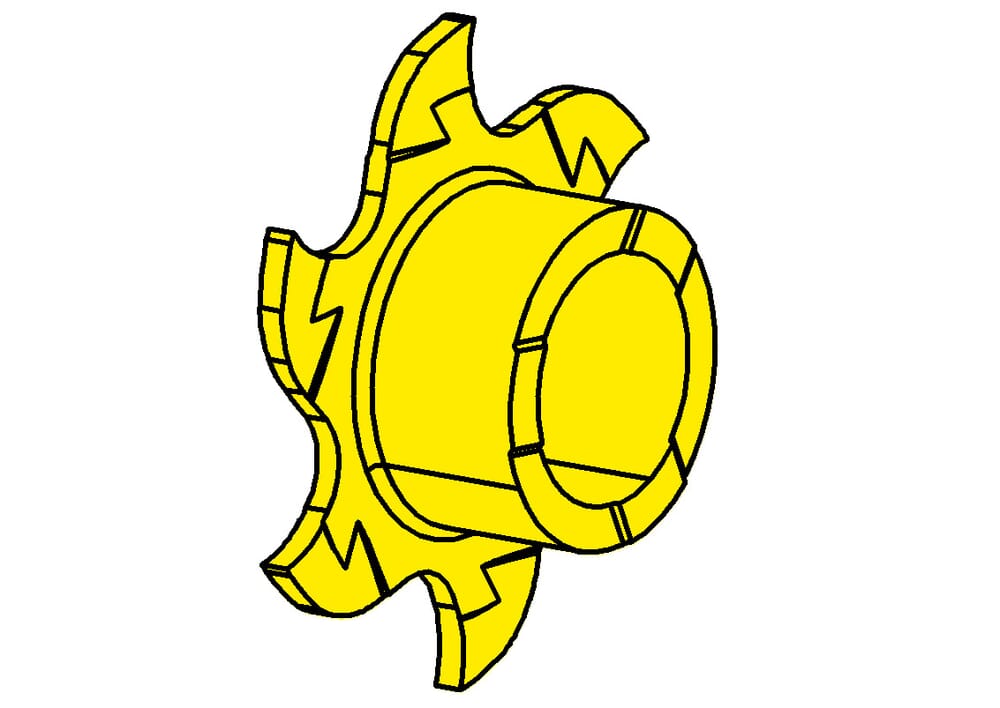

HORN insert 608.0090.00 EG35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
15.7 mm
Number of teeth (Z)
6 St.
ISO_SSC
HORN308080$84R$$$$$
Katalog_SSC
308080R
Width of groove (w)
0.9 mm
Maximum milling depth/ depth of groove (tmax)
3.5 mm
Cutting insert thickness, setting length complete (s)
4.9 mm
| Downloads | |
|---|---|
| 608_0090_00_EG35-DXF.DXF | Download |
| 608_0090_00_EG35-ISO.XML | Download |
| 608_0090_00_EG35-STP.STP | Download |
| 608_0090_00_EG35-DIN.XML | Download |
| Download all files | |
