608.0250.00 TI25
Insert
Part number 608025000TI25

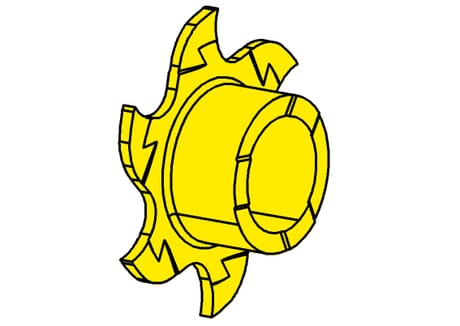

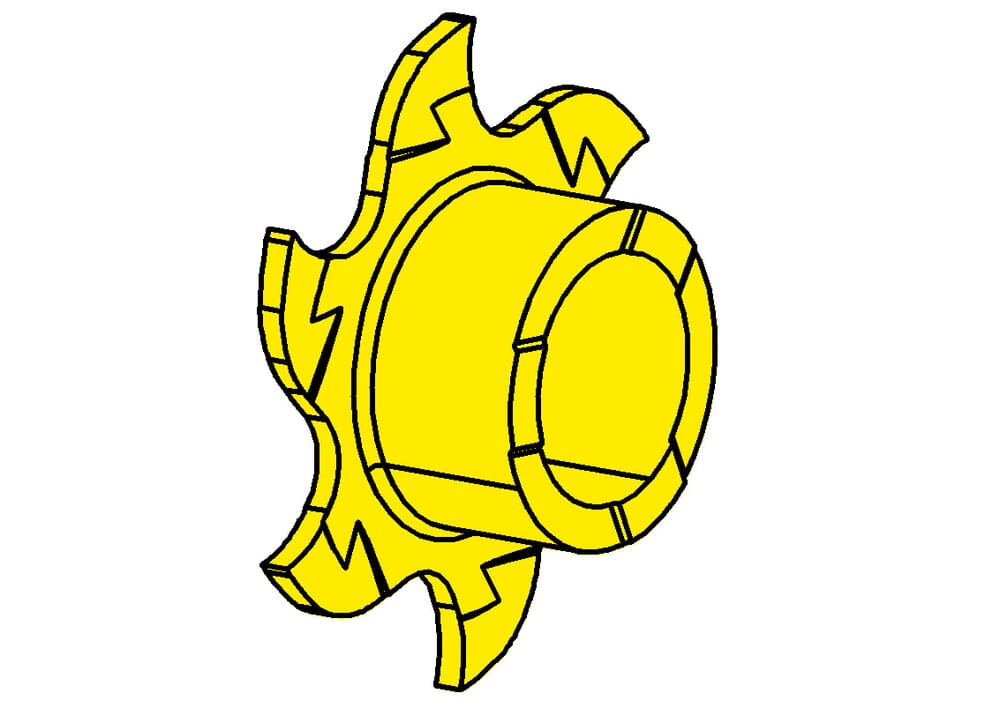

HORN Insert 608.0250.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
4.9
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Width of groove (w)
2.5
mm
plating-seat-size
0
Katalog_SSC
308080R
DIN_SSC
HORN30808084R
ISO_SSC
HORN308080$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
15.7
mm
| Downloads | |
|---|---|
| 608025000_20240117_053408892.STP | Download |
| 608025000_20240205_170056288.DXF | Download |
| Download all files | |
