613.0150.00 TI25
Inserts
Part number 613015000TI25

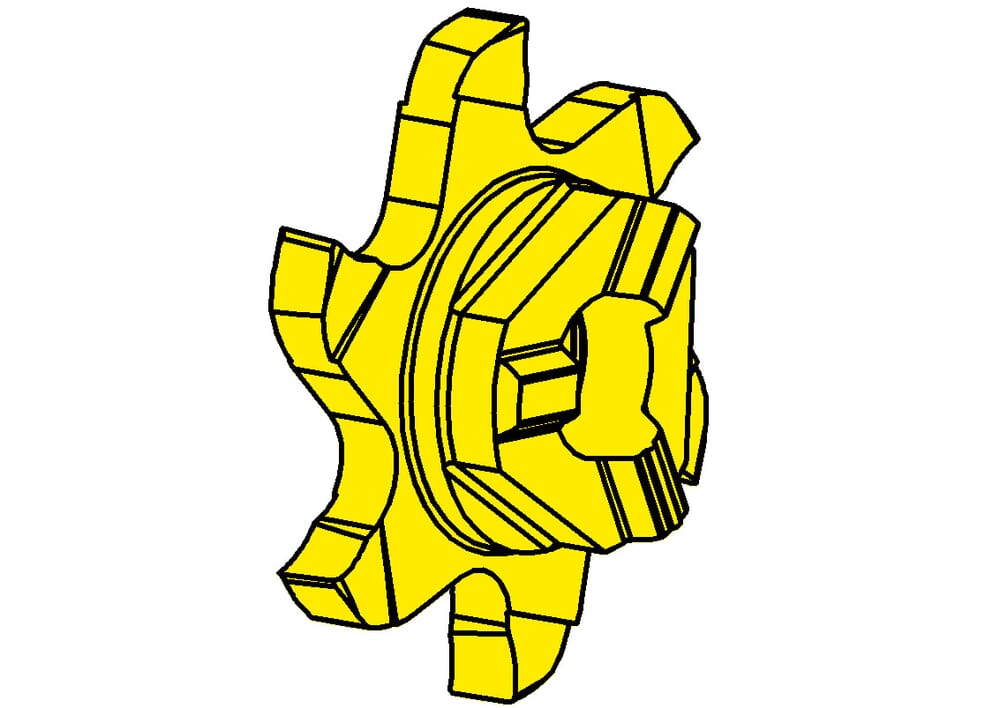

HORN Inserts 613.0150.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
1.5
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
| Downloads | |
|---|---|
| 613015000_20210630_095007672.STP | Download |
| 613015000_20210627_114917087.DXF | Download |
| Download all files | |
