613_0250_00_TI25-PICTO.TIF
613_0250_00_TI25-PICTO.TIF 613025000.TIF

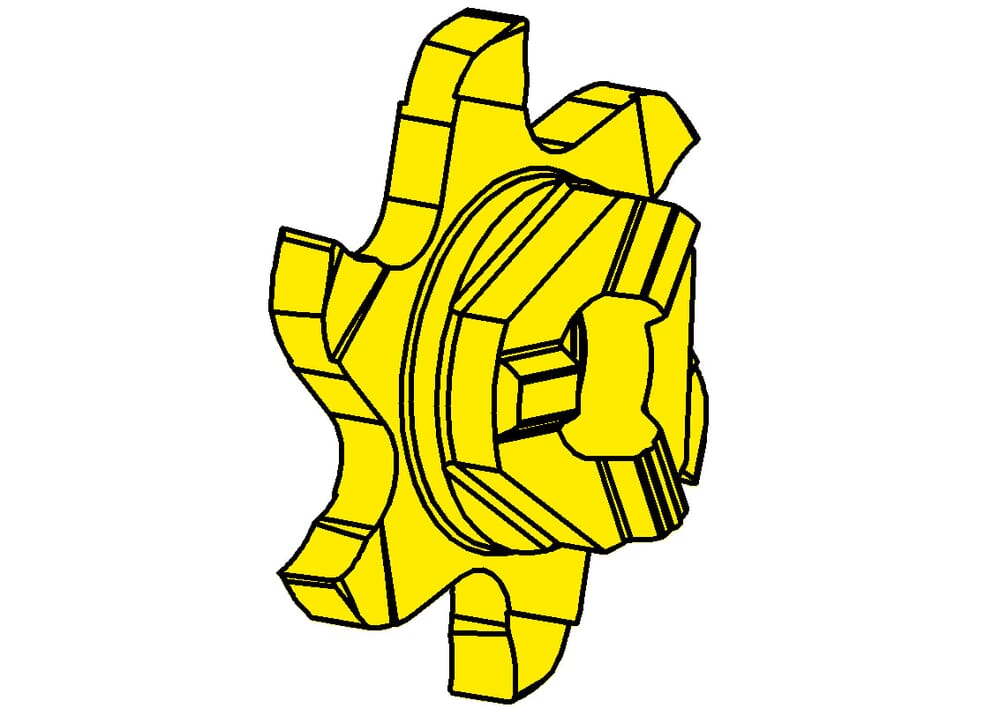

613.0250.00 TI25

Inserts

ZAEHNEZAHL_Z6.EPS SEEGERRING.EPS VOLLRADIUS_NUT.EPS NUTFRAESEN.EPS TRENNFRAESEN.EPS INNEN_NUT.EPS

Part number 613025000TI25

HORN Inserts 613.0250.00 TI25 for Milling

Please note:Technical instructions

Cutting diameter (Ds)
21.7 mm
Number of teeth (Z)
6 St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
2.5 mm
Maximum milling depth/ depth of groove (tmax)
4.5 mm
Cutting insert thickness, setting length complete (s)
5.7 mm
Corner radius (r)
0.2 mm
Downloads
613_0250_00_TI25-DXF.DXF Download
613_0250_00_TI25-ISO.XML Download
613_0250_00_TI25-STP.STP Download
613_0250_00_TI25-DIN.XML Download
Download all files
