632.0400.00 AS45

Insert

Part number 632040000AS45

HORN Insert 632.0400.00 AS45 for Milling

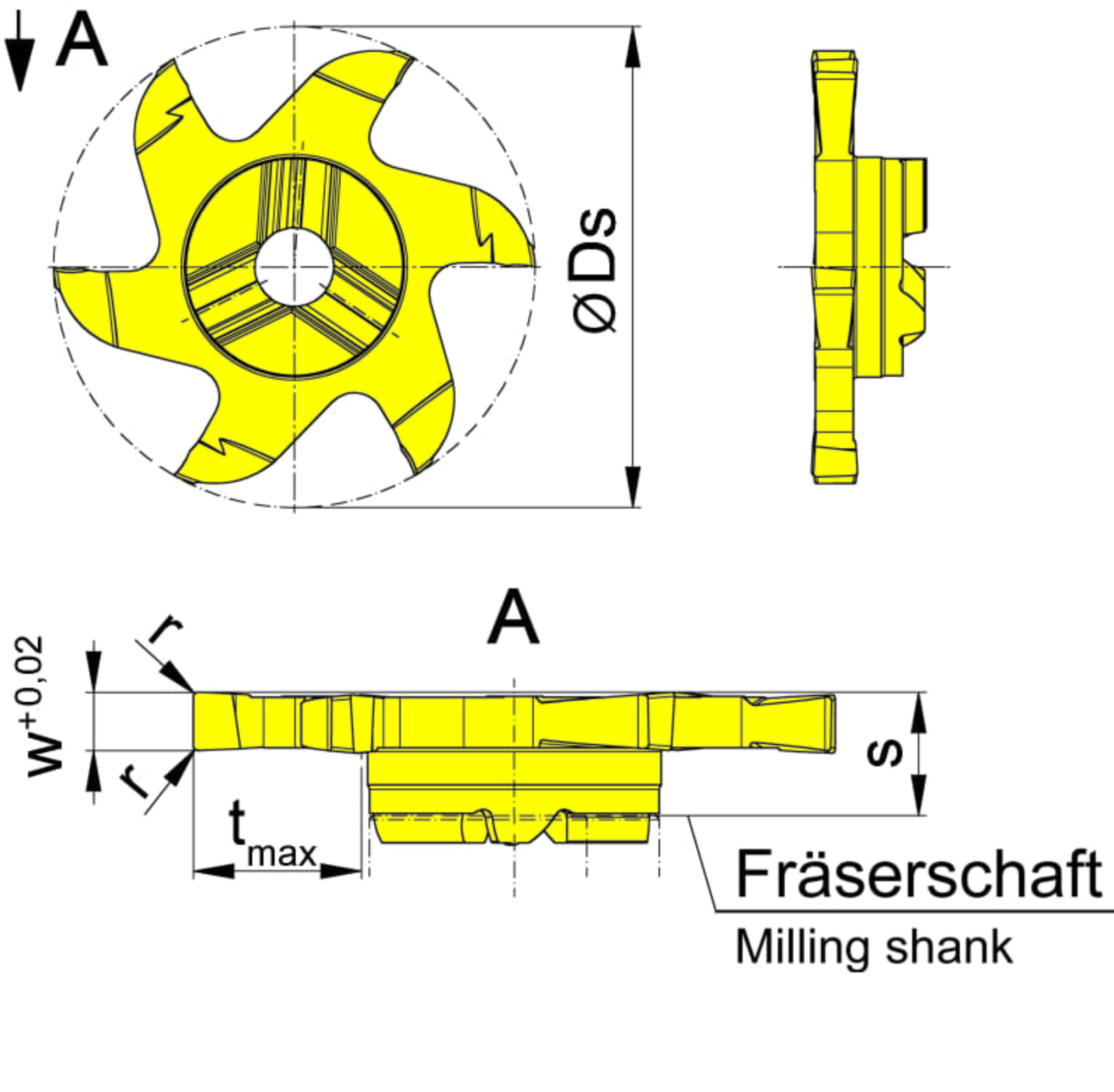

Corner radius (r)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Maximum milling depth/ depth of groove (tmax)

8.3 mm

Width of groove (w)

4 mm

plating-seat-size

Katalog_SSC

332143R

DIN_SSC

HORN-33214384R

ISO_SSC

HORN332143$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

31.7 mm
