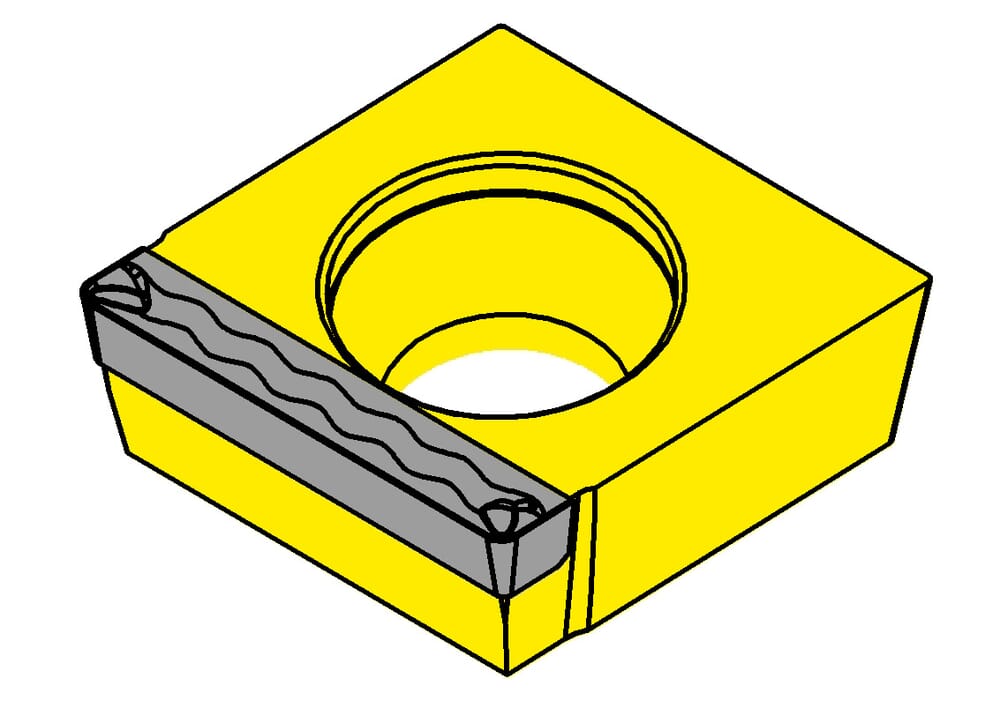

CCGT120408L.G.HN PD70

Inserts

GEOMETRIE_HN.EPS

WERKSTOFF_N.EPS

INNEN_BOHRUNG_AUSDREHEN.EPS

AUSSEN_LAENGSDREHEN.EPS

Part number CCGT120408LGHNPD70

HORN Inserts CCGT120408L.G.HN PD70 for Turning

Please note:Technical instructions

Bore diameter (d2)

5.5 mm

Free angle (α)

7 °

eclass-shortcut

21-18-20-11

ISO_SSC

ISO$CC1204083LB$$08

Corner radius (r)

0.8 mm

Cutting insert height, Cutting insert thickness (s)

4.76 mm

Effective cutting length (l1)

12.7 mm

Inner circle diameter (d)

12.7 mm
