CCGW09T302N.H0 PD70
Inserts
Part number CCGW09T302NH0PD70

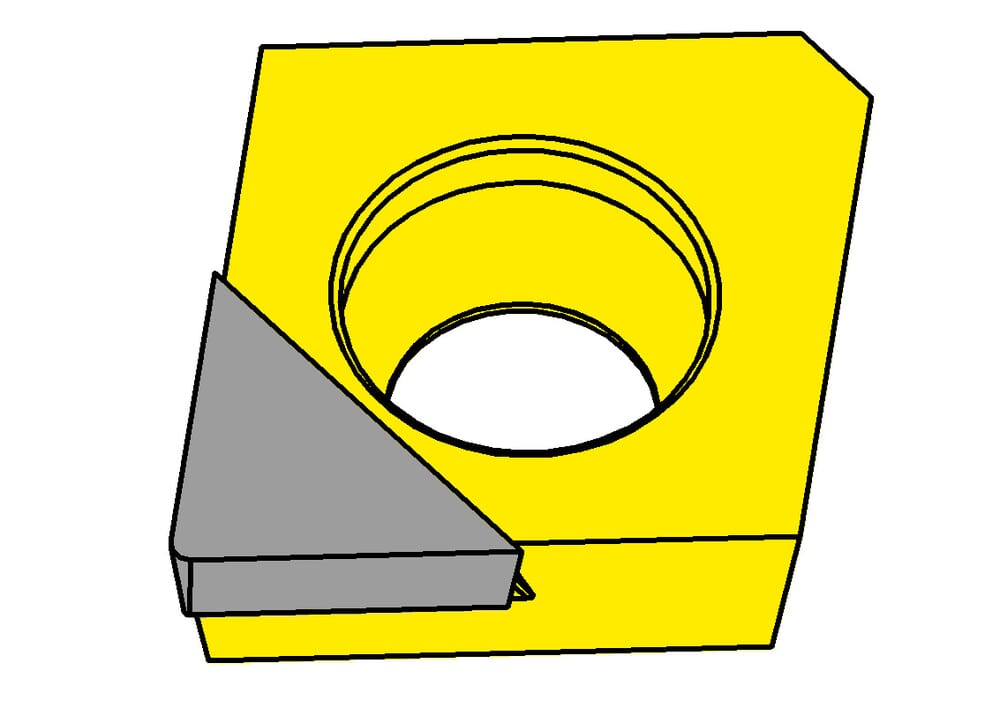

HORN Inserts CCGW09T302N.H0 PD70 for Turning
Please note:Technical instructions
Bore diameter (d2)
4.4 mm
Free angle (α)
7 °
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$CC09T3023NB$$02
Corner radius (r)
0.2 mm
Cutting insert height, Cutting insert thickness (s)
3.97 mm
Effective cutting length (l1)
4 mm
Inner circle diameter (d)
9.525 mm
