CCGW120408L.G.H0 PD70
Inserts
Part number CCGW120408LGH0PD70

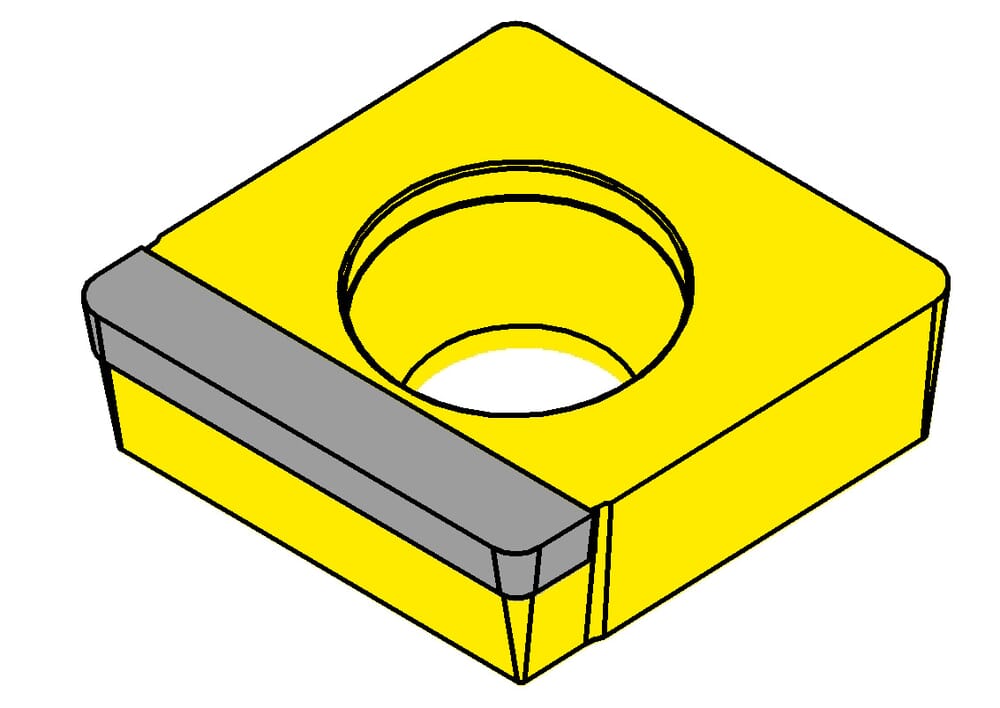

HORN Inserts CCGW120408L.G.H0 PD70 for Turning
Please note:Technical instructions
Bore diameter (d2)
5.5 mm
Free angle (α)
7 °
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$CC1204083LB$$08
Corner radius (r)
0.8 mm
Cutting insert height, Cutting insert thickness (s)
4.76 mm
Effective cutting length (l1)
12.7 mm
Inner circle diameter (d)
12.7 mm
| Downloads | |
|---|---|
| CCGW120408L_G_H0_PD70-ISO.XML | Download |
| CCGW120408L_G_H0_PD70-DIN.XML | Download |
| Download all files | |
