CPGT060208N.HN HD08
Insert
Part number CPGT060208NHNHD08

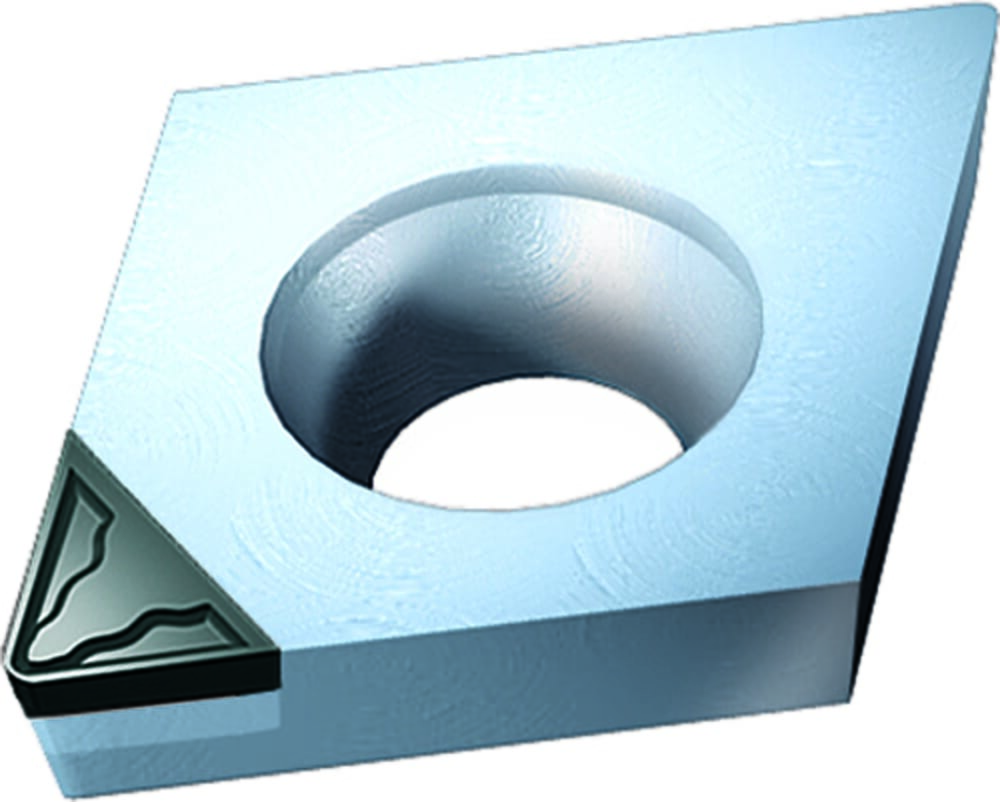

HORN Insert CPGT060208N.HN HD08 for Turning
Please note:Technical instructions
Bore diameter (d2)
2.8
mm
Free angle (α)
11
°
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$CP0602083NB$$08
DIN_SSC
CP0602083N
Corner radius (r)
0.8
mm
Cutting insert height, Cutting insert thickness (s)
2.38
mm
Effective cutting length (l1)
2.5
mm
Inner circle diameter (d)
6.35
mm
