DA31.016.A.04 TA45
DA Milling cutter
Part number DA31016A04TA45
HORN DA Milling cutter DA31.016.A.04 TA45 for Milling
Please note:Technical instructions

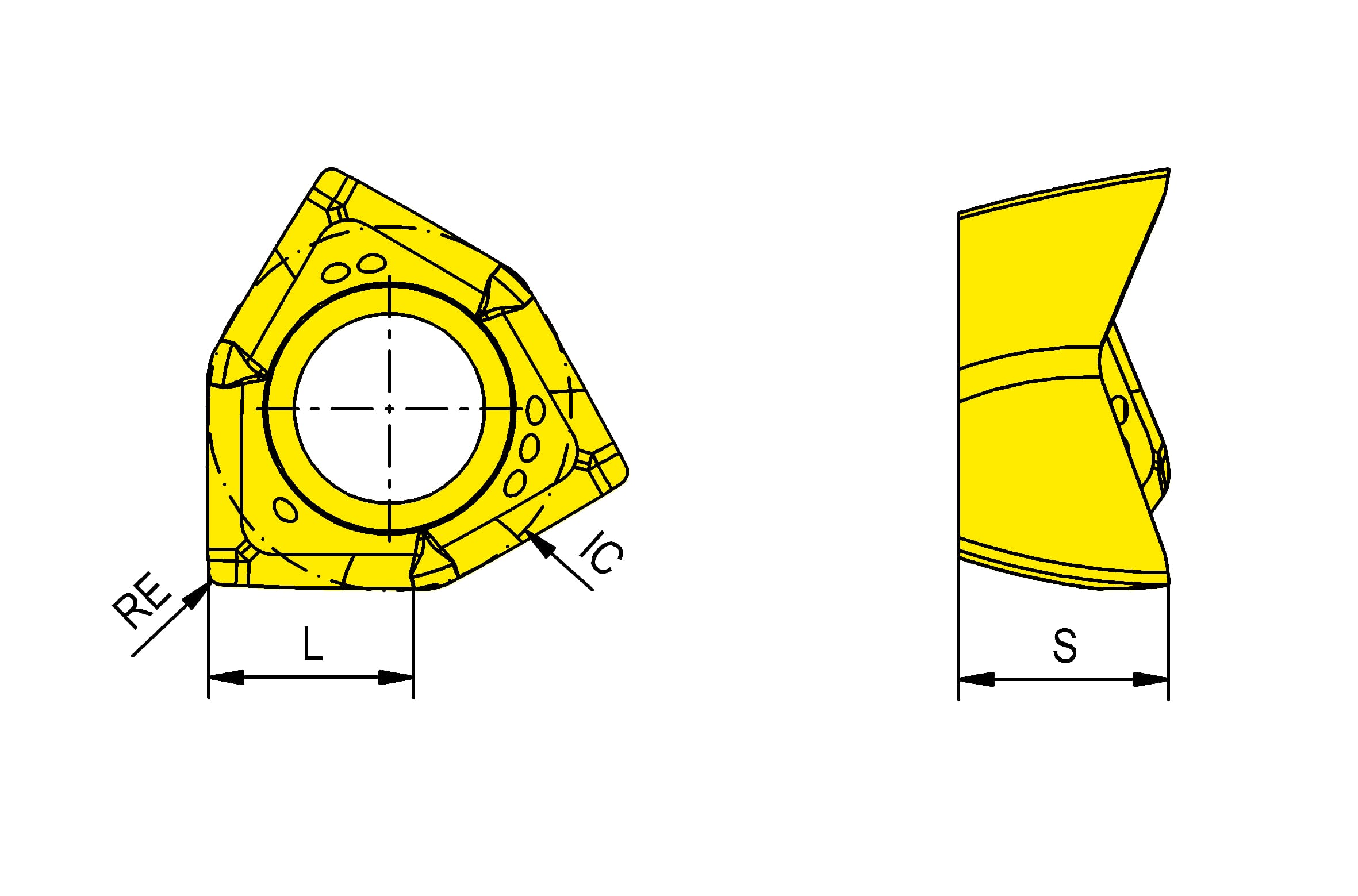

Cutting edge count (CEDC)
3
inscribed circle diameter (IC)
5.31 mm
Cutting edge height (S)
3.08 mm
Corner radius (RE)
0.4 mm
Cutting edge length (L)
3 mm
| Downloads | |
|---|---|
| DA31_016_A_04_TA45-ISO.XML | Download |
| DA31_016_A_04_TA45-DXF.DXF | Download |
| DA31_016_A_04_TA45-STP.STP | Download |
| DA31_016_A_04_TA45-DIN.XML | Download |
| Download all files | |
