DA32.020.A.04 SA4B
DA Milling cutter
Part number DA32020A04SA4B
HORN DA Milling cutter DA32.020.A.04 SA4B for Milling
Please note:Technical instructions

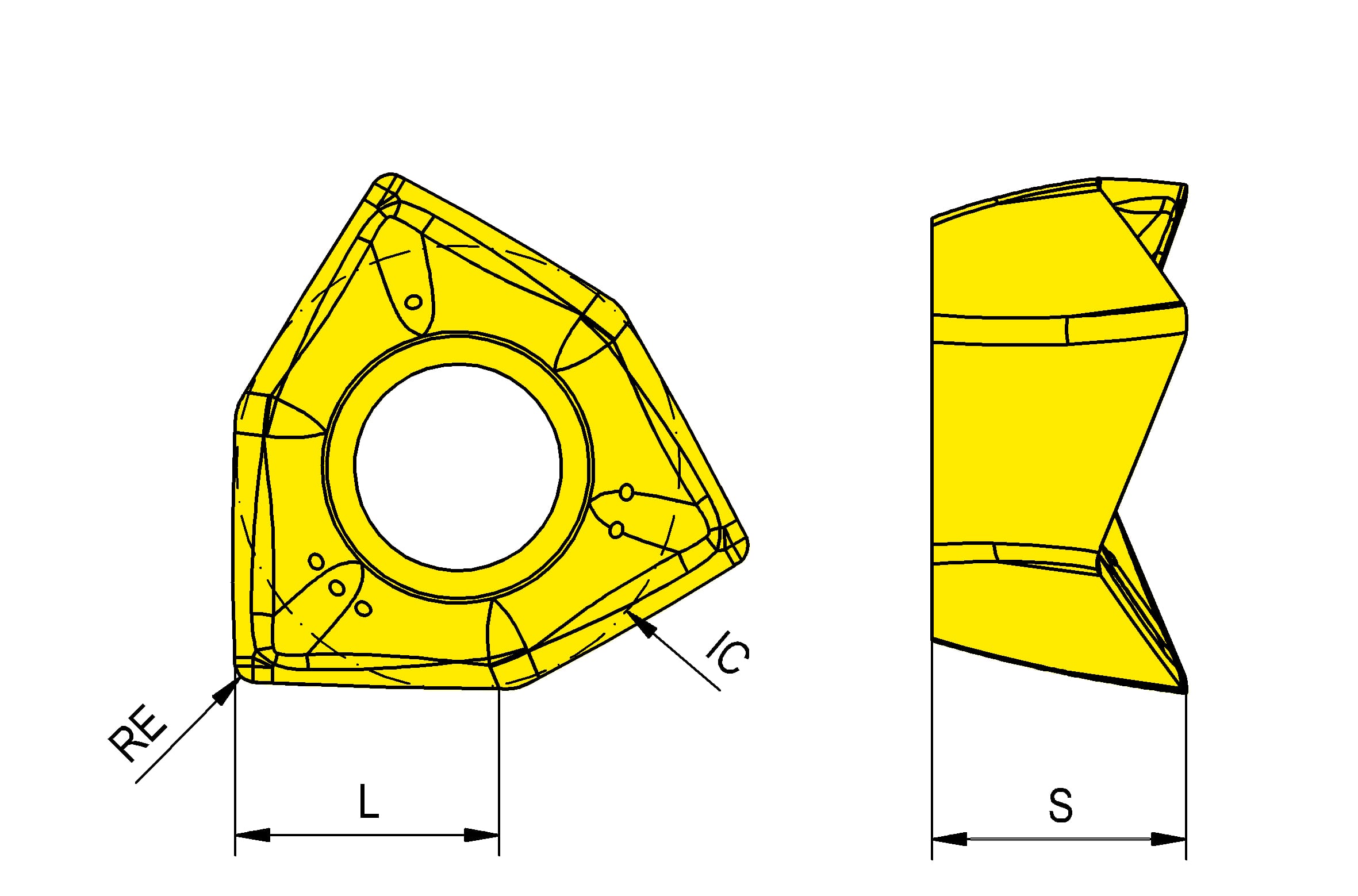

Cutting edge count (CEDC)
3
inscribed circle diameter (IC)
8.15 mm
Cutting edge height (S)
4.69 mm
Corner radius (RE)
0.4 mm
Cutting edge length (L)
4.6 mm
| Downloads | |
|---|---|
| DA32_020_A_04_SA4B-ISO.XML | Download |
| DA32_020_A_04_SA4B-DXF.DXF | Download |
| DA32_020_A_04_SA4B-STP.STP | Download |
| DA32_020_A_04_SA4B-DIN.XML | Download |
| Download all files | |
