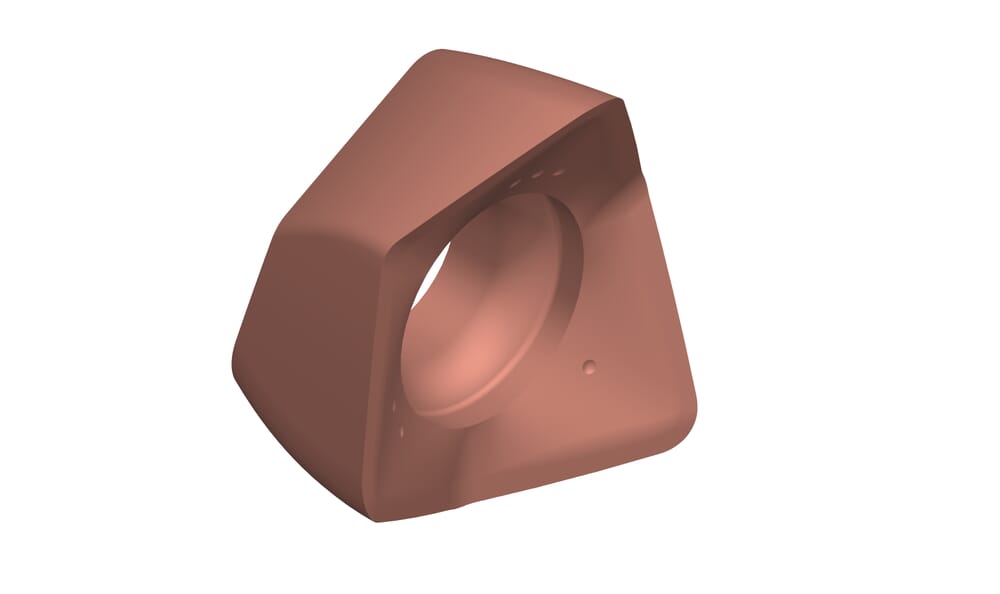

DA32.020.A.10 SA4B
DA Milling cutter
Part number DA32020A10SA4B
HORN DA Milling cutter DA32.020.A.10 SA4B for Milling
Please note:Technical instructions
cutting-edge-diameter-met
20 mm
ISO_SSC
HORNDA3220$$3N$$$$$
Katalog_SSC
DA3220
Width of groove (a)
4.6 mm
Corner radius (rx)
1 mm
Maximum stepover axial (ap) (ap)
4.8 mm
Cutting insert height, Cutting insert thickness (h)
4.7 mm
For cutting diameter (Ds)
20 mm
eclass-shortcut
21-18-20-07
| Downloads | |
|---|---|
| DA32_020_A_10_SA4B-ISO.XML | Download |
| DA32_020_A_10_SA4B-DXF.DXF | Download |
| DA32_020_A_10_SA4B-STP.STP | Download |
| DA32_020_A_10_SA4B-DIN.XML | Download |
| Download all files | |
