DAH.37.022.S.08 SA4B
Inserts
Part number DAH37022S08SA4B

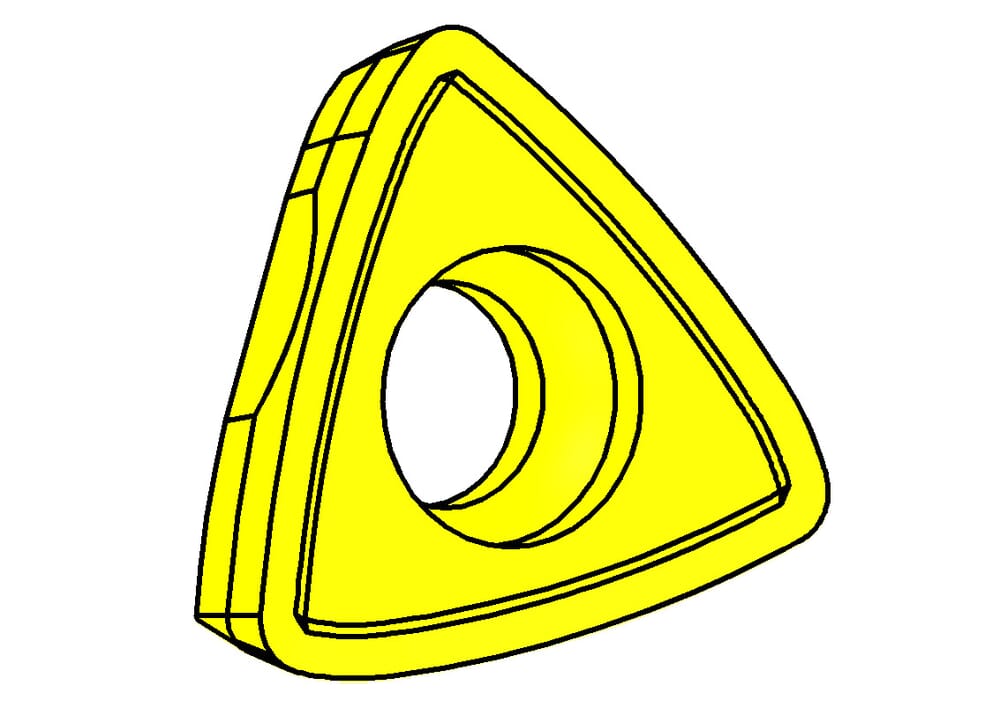

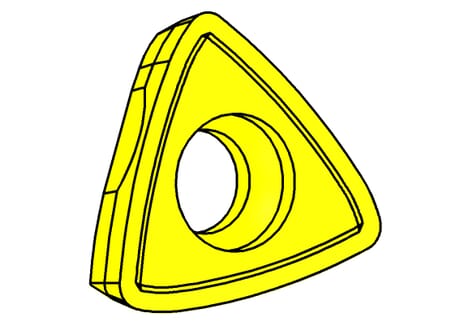

HORN Inserts DAH.37.022.S.08 SA4B for Milling
Please note:Technical instructions
ISO_SSC
HORNDAH37$$$3N$$$$$
Katalog_SSC
DAH37
Width of groove (a)
7.9 mm
Corner radius (rx)
0.8 mm
Maximum stepover axial (ap) (ap)
1.2 mm
Cutting insert height, Cutting insert thickness (h)
3.18 mm
| Downloads | |
|---|---|
| DAH_37_022_S_08_SA4B-STP.STP | Download |
| DAH_37_022_S_08_SA4B-ISO.XML | Download |
| DAH_37_022_S_08_SA4B-DIN.XML | Download |
| Download all files | |
