DCG.3.60.632.2.04 MG12
Endmill
Part number DCG360632204MG12

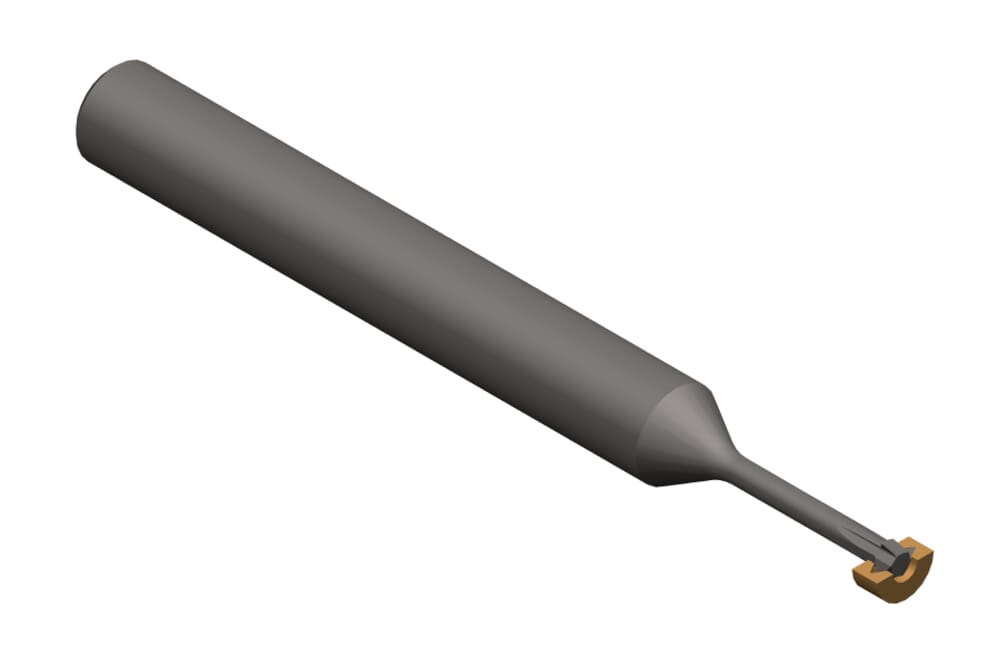

HORN Endmill DCG.3.60.632.2.04 MG12 for Milling
Please note:Technical instructions
Pitch (P)
0.794
mm
Smallest bore diameter (Dmin)
2.6
mm
Thread (Gewinde)
#6 - 32UNC #8 - 32UNC
Total length (l1)
39
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
22
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2.2
mm
Neck length (l3)
8
mm
Shank diameter (d2)
4
mm
| Downloads | |
|---|---|
| DCG360632204_20210630_113313425.STP | Download |
| DCG360632204_20210706_172928717.DXF | Download |
| Download all files | |
