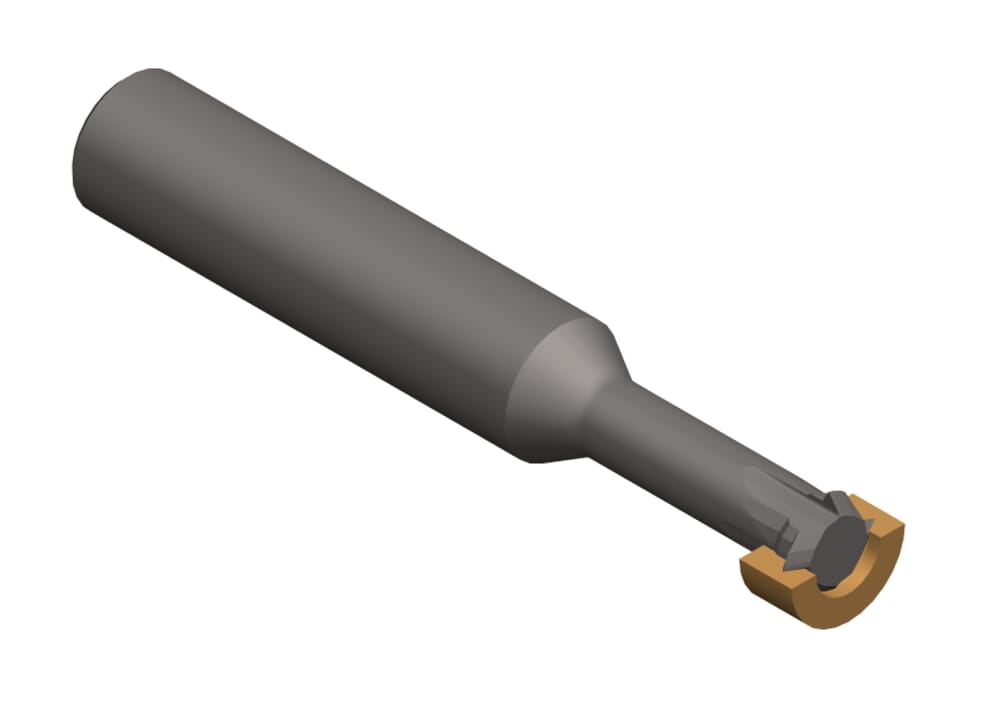

DCG.4.M12.175.6.2.10 MG12
Endmill
Part number DCG4M121756210MG12
HORN Endmill DCG.4.M12.175.6.2.10 MG12 for Milling
Please note:Technical instructions
Pitch (P)
1.75
mm
Smallest bore diameter (Dmin)
10
mm
Thread (Gewinde)
M12
Total length (l1)
63
mm
Neck diameter (d3)
5.5
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
20
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DCG4M121756210_20240116_233513759.STP | Download |
| DCG4M121756210_20210625_220652609.DXF | Download |
| Download all files | |
