DCG.4.NP18.3.2.10 AN25
DC threadmill - NPT pipe - 18 TPI
Part number DCG4NP183210AN25

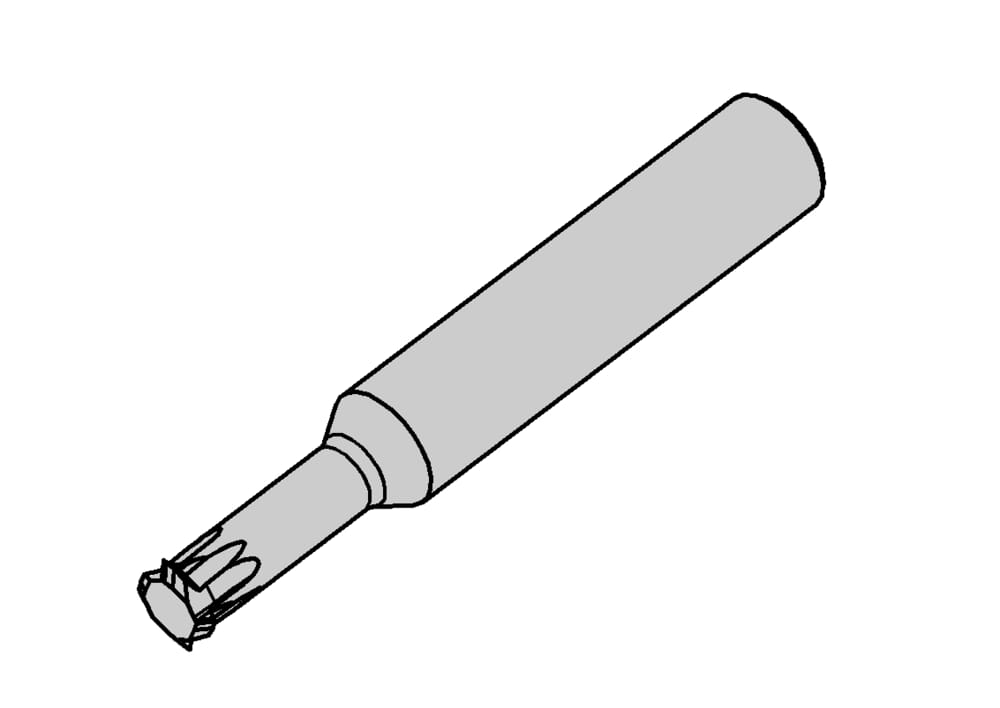

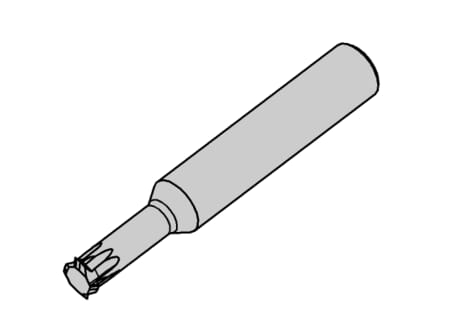

HORN DC threadmill - NPT pipe - 18 TPI DCG.4.NP18.3.2.10 AN25 for Milling
Please note:Technical instructions
Pitch (P)
1.411
mm
Smallest bore diameter (Dmin)
16.7
mm
Thread (Gewinde)
1/4'' - 18 NPT

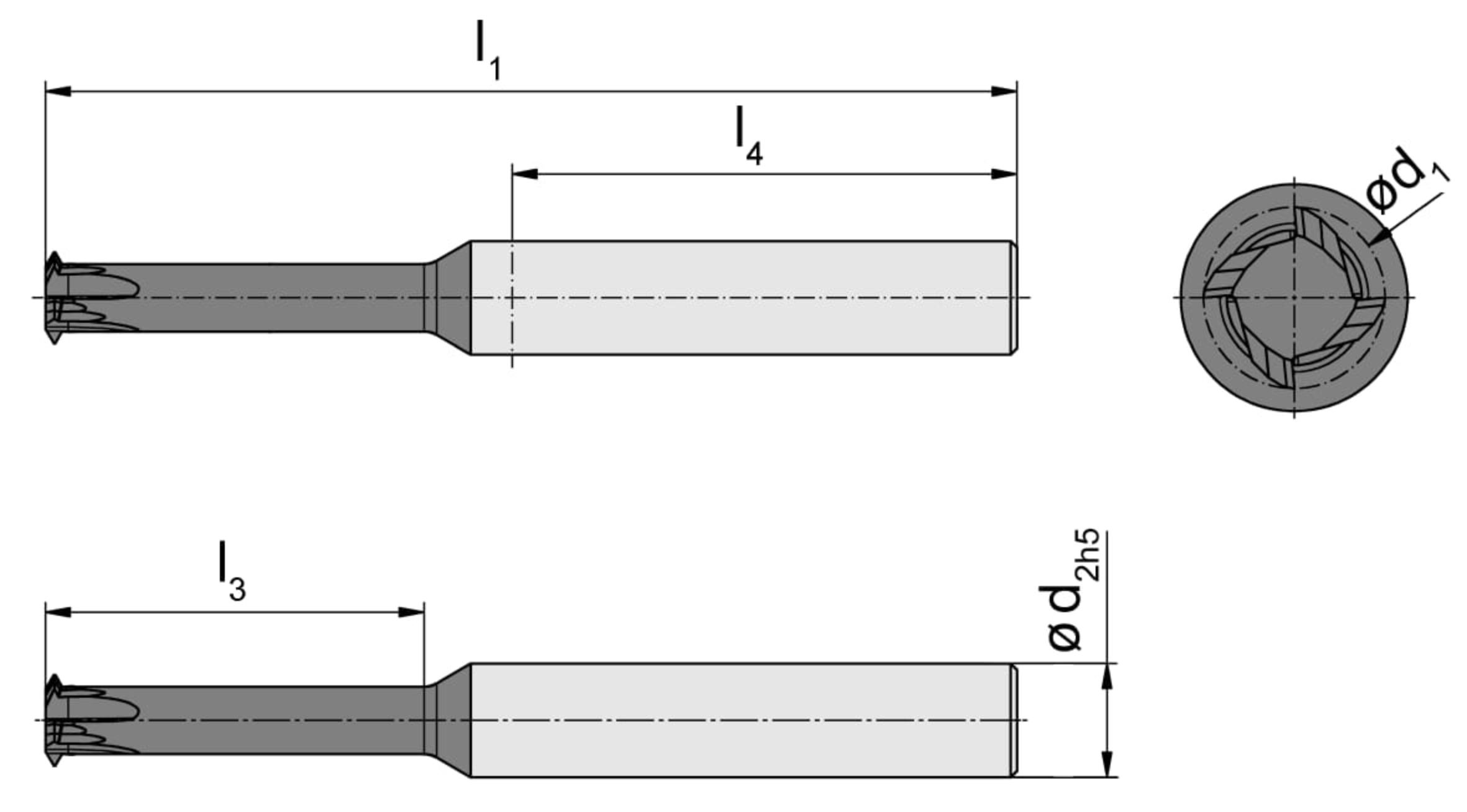

Total length (l1)
77
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8.5
mm
Neck length (l2)
20
mm
Shank diameter (d4)
10
mm
| Downloads | |
|---|---|
| DCG4NP183210_20230113_010959294.STP | Download |
| DCG4NP183210.DXF | Download |
| Download all files | |
