DCN.4.120.10.00.6.12 RC45

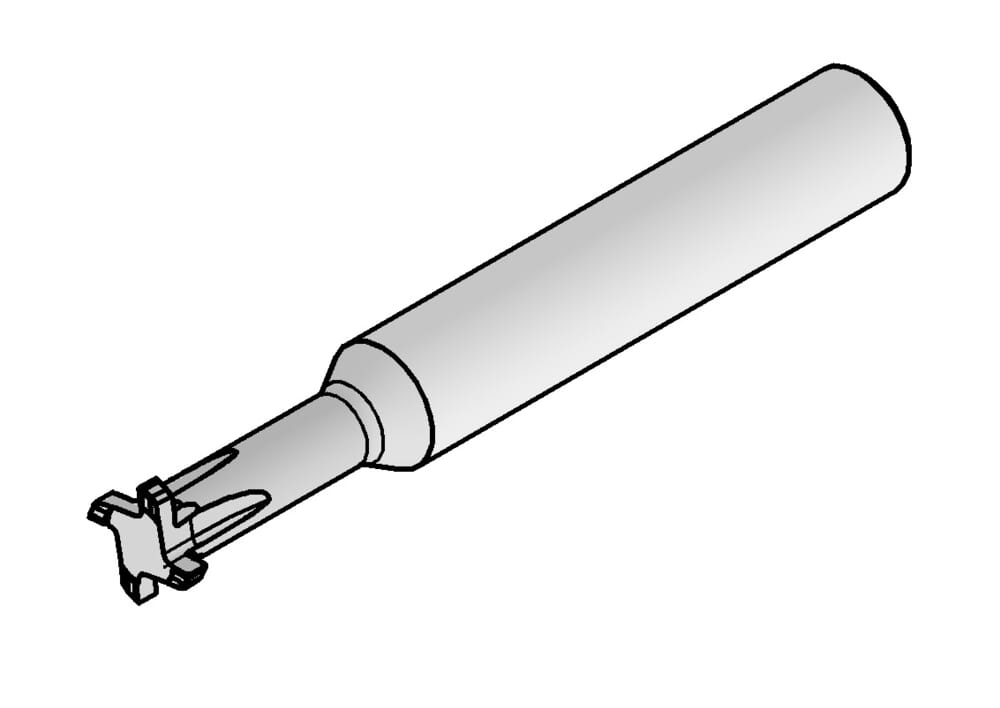

DC Slot Cutter Toolholder

Part number DCN41201000612RC45

HORN DC Slot Cutter Toolholder DCN.4.120.10.00.6.12 RC45 for Milling

Shank diameter (d2)

12 mm

Neck length (l3)

25 mm

Cutting diameter (d1)

12 mm

Number of teeth (Z)

4 St.

Width of groove (w)

1 mm

Shank, clamping length (l4)

45 mm

cutting-width-met

1 mm

Neck diameter (d3)

5.7 mm

Maximum milling depth/ depth of groove (tmax)

3 mm

Total length (l1)

77 mm

smallest-bore-diameter-met

12 mm
