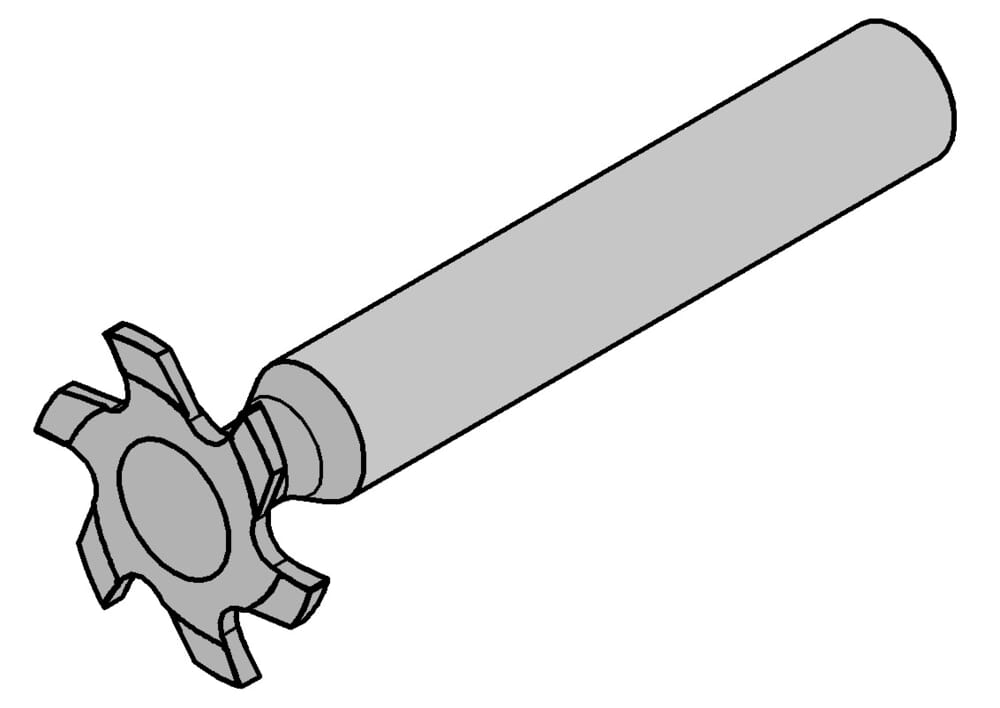

DCX.6.30.200.4.07.12 RC45
DC Slot Cutter Toolholder
Part number DCX63020040712RC45
HORN DC Slot Cutter Toolholder DCX.6.30.200.4.07.12 RC45 for Milling
Please note:Technical instructions
Shank diameter (d2)
12 mm
Neck length (l3)
9 mm
Cutting diameter (d1)
30 mm
Number of teeth (Z)
6 St.
Width of groove (w)
2.03 mm
Shank, clamping length (l4)
45 mm
cutting-width-met
2.03 mm
Neck diameter (d3)
7 mm
Maximum milling depth/ depth of groove (tmax)
11 mm
Total length (l1)
80 mm
smallest-bore-diameter-met
31 mm
| Downloads | |
|---|---|
| DCX_6_30_200_4_07_12_RC45-DIN.XML | Download |
| DCX_6_30_200_4_07_12_RC45-DXF.DXF | Download |
| DCX_6_30_200_4_07_12_RC45-STP.STP | Download |
| DCX_6_30_200_4_07_12_RC45-ISO.XML | Download |
| Download all files | |
