DG10.Q04.10.3.01.0P RC4P

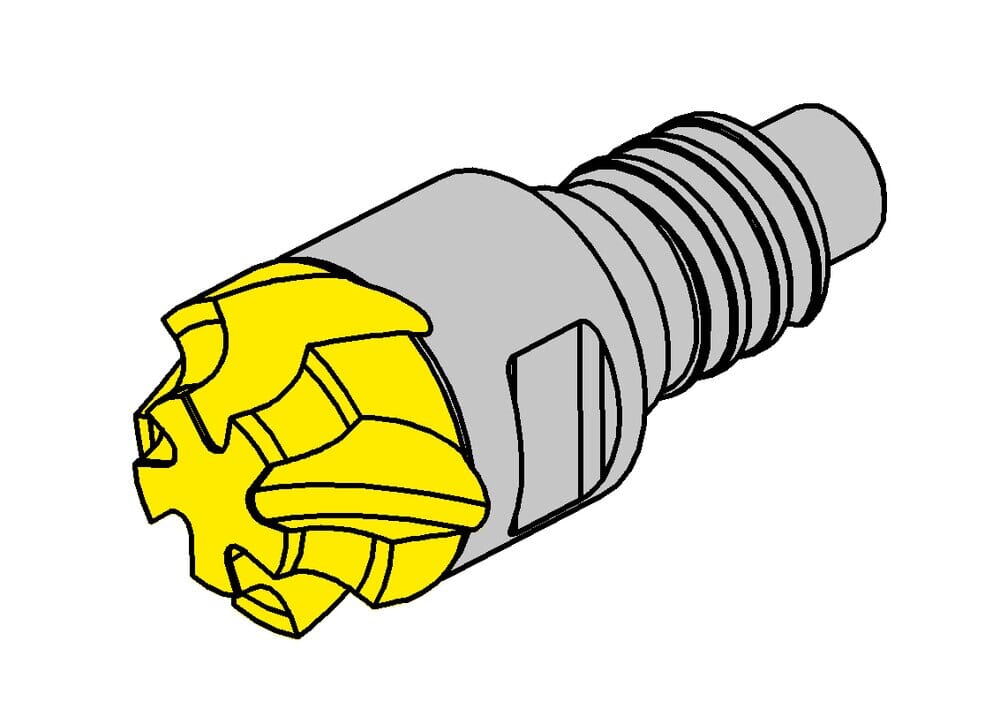

Milling Toolholder DG10

Part number DG10Q04103010PRC4P

HORN Milling Toolholder DG10 DG10.Q04.10.3.01.0P RC4P for Milling

ISO_SSC

HORNDG01028$0N$$$$$

Total length (l1)

24.1 mm

Diameter (d1)

4 mm

Tool length from stop, flange (l3)

12 mm

Effective cutting length (l2)

1 mm

Corner radius (r)

1 mm

Key range (SW)

8 mm

Neck diameter (d3)

9.8 mm

Katalog_SSC

DG0102

System (System)

DG10

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

7 mm
