DSTH.4.040.050.015 TS3E
DS endmill
Part number DSTH4040050015TS3E

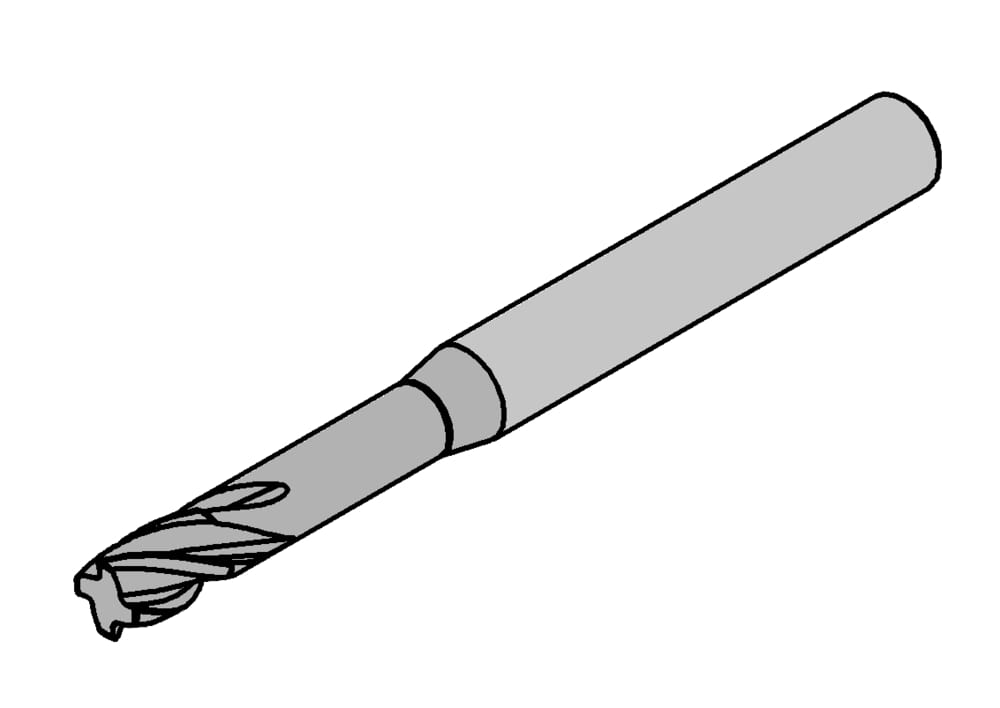

HORN DS endmill DSTH.4.040.050.015 TS3E for Milling
Please note:Technical instructions
Shank tapering angle γ (γ)
20 °
Total length (l1)
64 mm
Effective cutting length (l2)
6 mm
Corner radius (r)
0.5 mm
ISOCCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-01
Number of teeth (Z)
4 St.
Cutting diameter (d1)
4 mm
Neck length (l3)
6 mm
Shank diameter (d2)
6 mm
| Downloads | |
|---|---|
| DSTH_4_040_050_015_TS3E-DXF.DXF | Download |
| DSTH_4_040_050_015_TS3E-STP.STP | Download |
| DSTH_4_040_050_015_TS3E-ISO.XML | Download |
| DSTH_4_040_050_015_TS3E-DIN.XML | Download |
| Download all files | |
