DSTH.4.060.050.030 TS3E
DS-Endmill
Part number DSTH4060050030TS3E

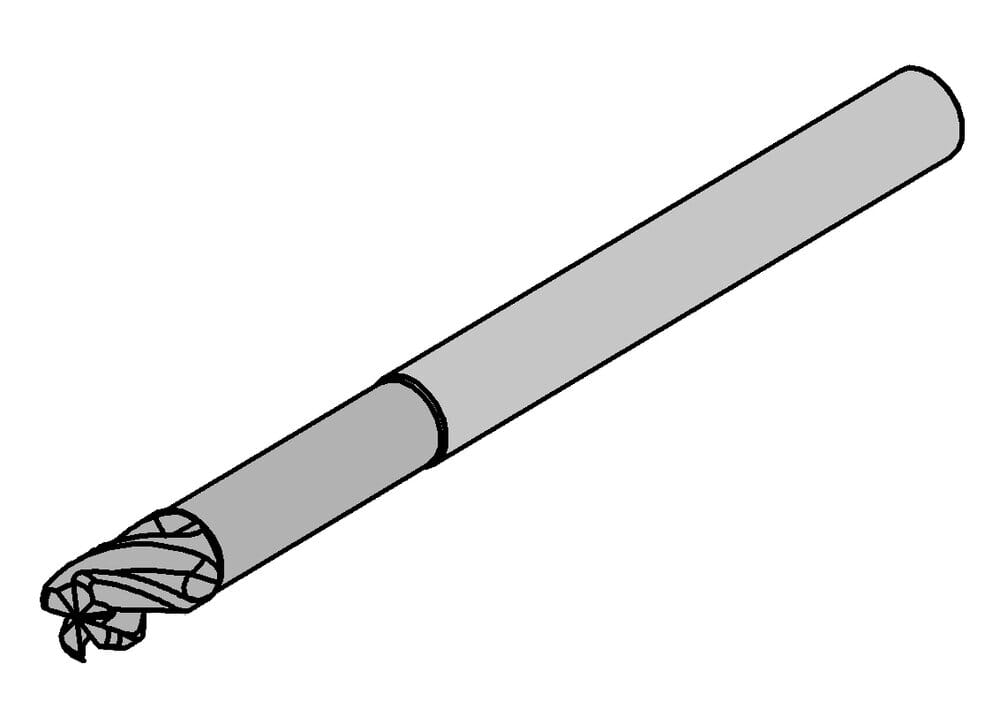

HORN DS-Endmill DSTH.4.060.050.030 TS3E for Milling
Please note:Technical instructions
Corner radius (r)
0.5 mm
eclass-shortcut
21-18-06-01
Total length (l1)
64 mm
Effective cutting length (l2)
9 mm
Shank diameter (d2)
6 mm
Neck diameter (d3)
5.7 mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
4 St.
Cutting diameter (d1)
6 mm
Neck length (l3)
18 mm
| Downloads | |
|---|---|
| DSTH_4_060_050_030_TS3E-ISO.XML | Download |
| DSTH_4_060_050_030_TS3E-DIN.XML | Download |
| Download all files | |
