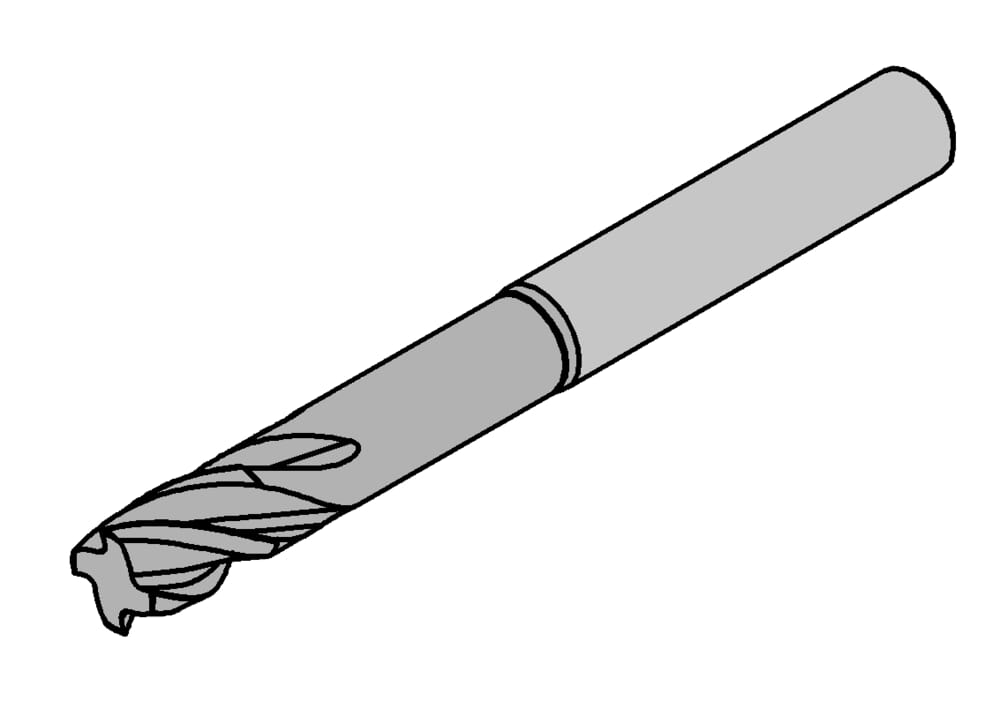

DSTH.4.080.020.050 TS3E
DS endmill
Part number DSTH4080020050TS3E
HORN DS endmill DSTH.4.080.020.050 TS3E for Milling
Please note:Technical instructions
Shank diameter (d2)
8 mm
Neck length (l3)
40 mm
Cutting diameter (d1)
8 mm
Number of teeth (Z)
4 St.
DIN_CCTMS
ZYL00800105
ISO_CCTMS
ZYL01F8000h$06
Neck diameter (d3)
7.6 mm
Corner radius (r)
0.2 mm
Effective cutting length (l2)
12 mm
Total length (l1)
78 mm
| Downloads | |
|---|---|
| DSTH4080020050_20210630_115018579.STP | Download |
| DSTH4080020050.DXF | Download |
| Download all files | |
