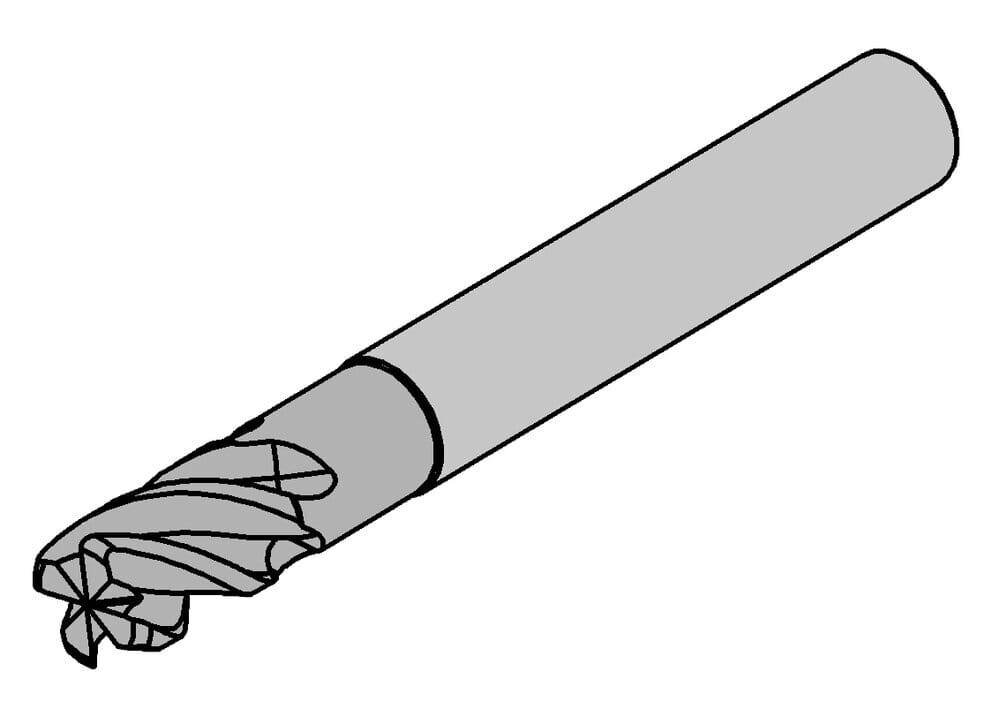

DSTH.4.120.020.030 TS3E
DS endmill
Part number DSTH4120020030TS3E
HORN DS endmill DSTH.4.120.020.030 TS3E for Milling
Please note:Technical instructions
Corner radius (r)
0.2 mm
eclass-shortcut
21-18-06-01
Total length (l1)
100 mm
Effective cutting length (l2)
18 mm
Shank diameter (d2)
12 mm
Neck diameter (d3)
11.6 mm
ISO_CCTMS
ZYL01G1200h$06
DIN_CCTMS
ZYL01200105
Number of teeth (Z)
4 St.
Cutting diameter (d1)
12 mm
Neck length (l3)
36 mm
