HSKT63.R220.110.K1.IK

base support

Part number HSKT63R220110K1IK

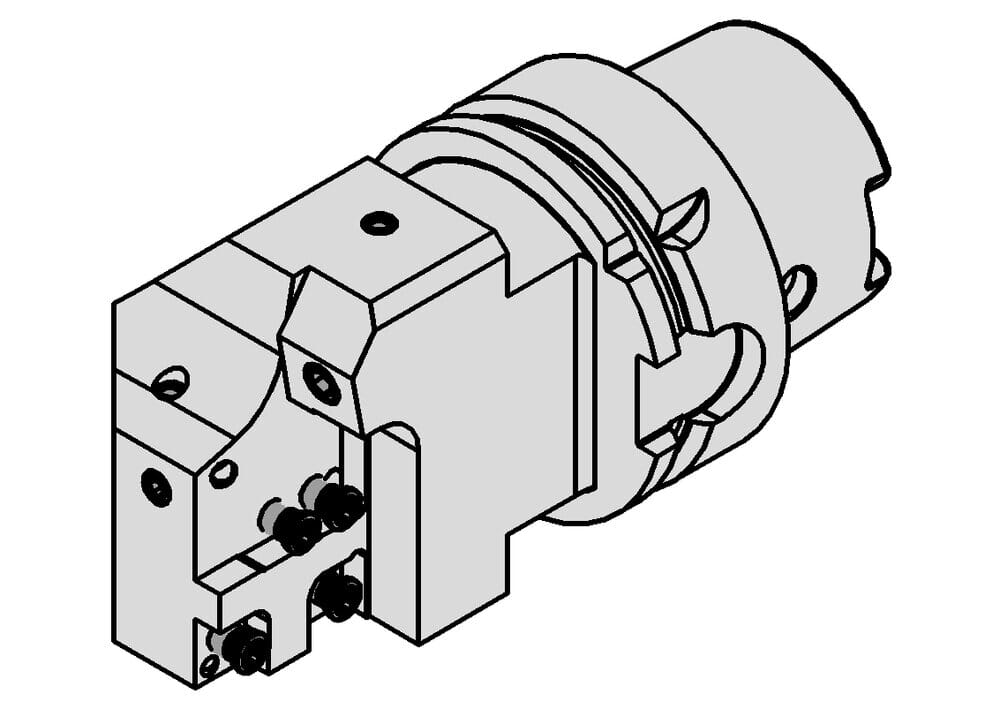

HORN base support HSKT63.R220.110.K1.IK for Turning

DIN_CCTWS

HORN-22000193;HORN-22000183

eclass-shortcut

21-18-10-01

ISO_CCTMS

HSK07C0630$$$$

DIN_CCTMS

HSK06300795

Katalog_CCTWS

220001

Distance from center (h1)

12.5 mm

ISO_CCTWS

HORN22000193$$;HORN22000183$$

dim-locating-face-to-cassette-met

81 mm

Length assembly from bore formula (l)

l1+lK

Adjustment dimension (formula) (f)

f1+f3

Length of base from bore (l2)

91 mm

Cassette system from the middle (f1)

0.6 mm

Bore diameter rotate (d)

63 mm
