L105.0820.1.9 TI25
Inserts
Part number L105082019TI25

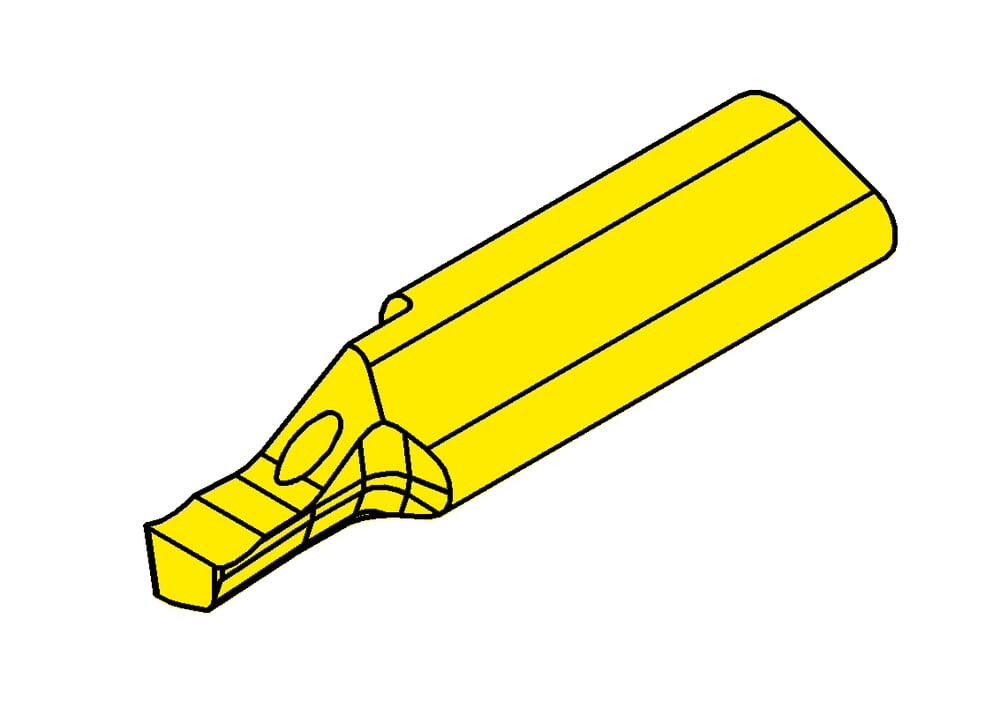

HORN Inserts L105.0820.1.9 TI25 for Turning
Please note:Technical instructions

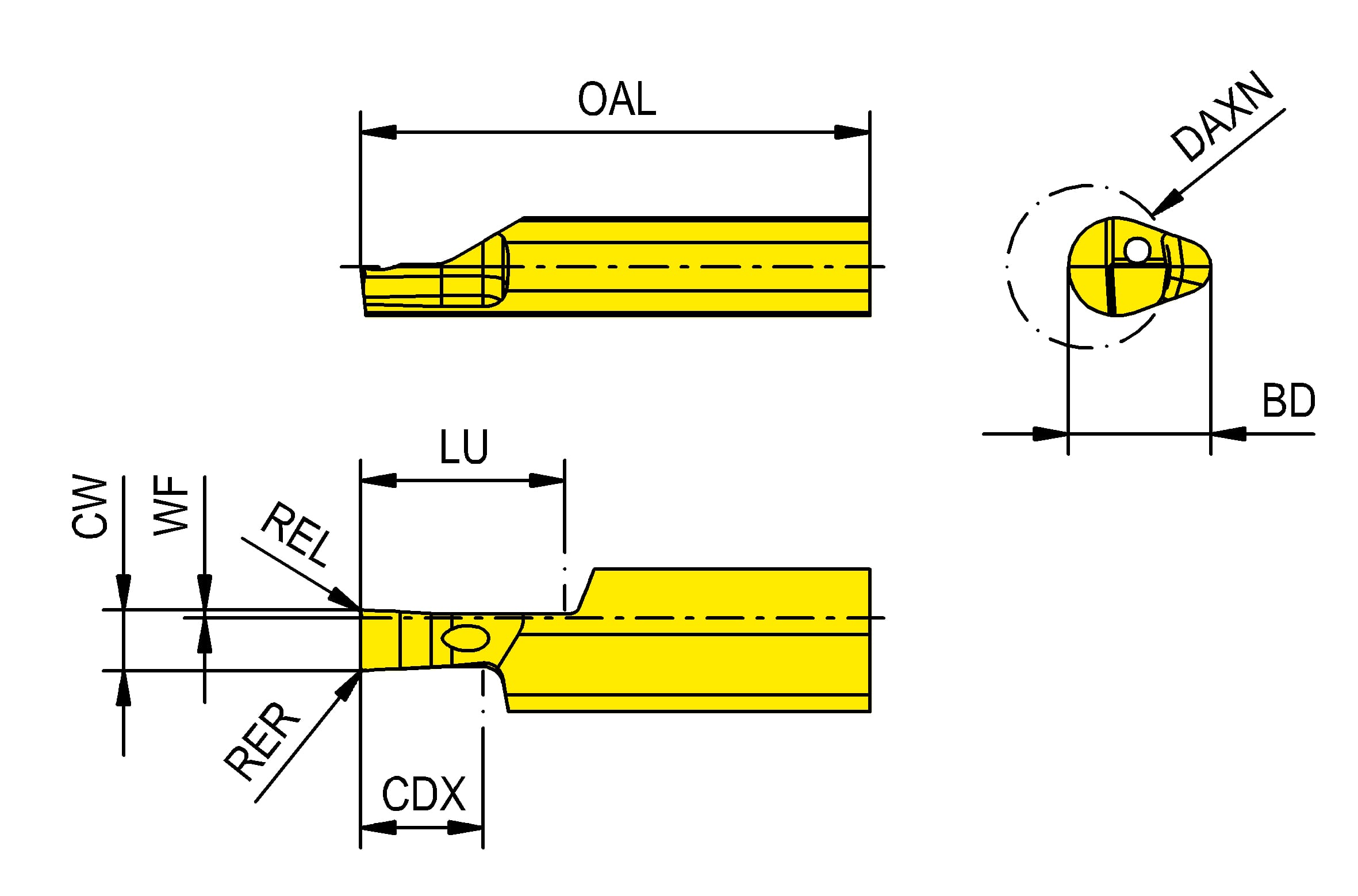

Cutting edge count (CEDC)
1
Funktional width (WF)
1.6 mm
corner radius left hand (REL)
0.15 mm
corner radius right hand (RER)
0.15 mm
Overall length (OAL)
25 mm
Usable length (LU)
10 mm
Axial groove inside diameter minimum (DAXN)
8 mm
Cutting width (CW)
2 mm
Cutting depth maximum (CDX)
4 mm
Body diameter (BD)
7 mm
