L105.1023.005.1.5 TH35
Insert
Part number L105102300515TH35

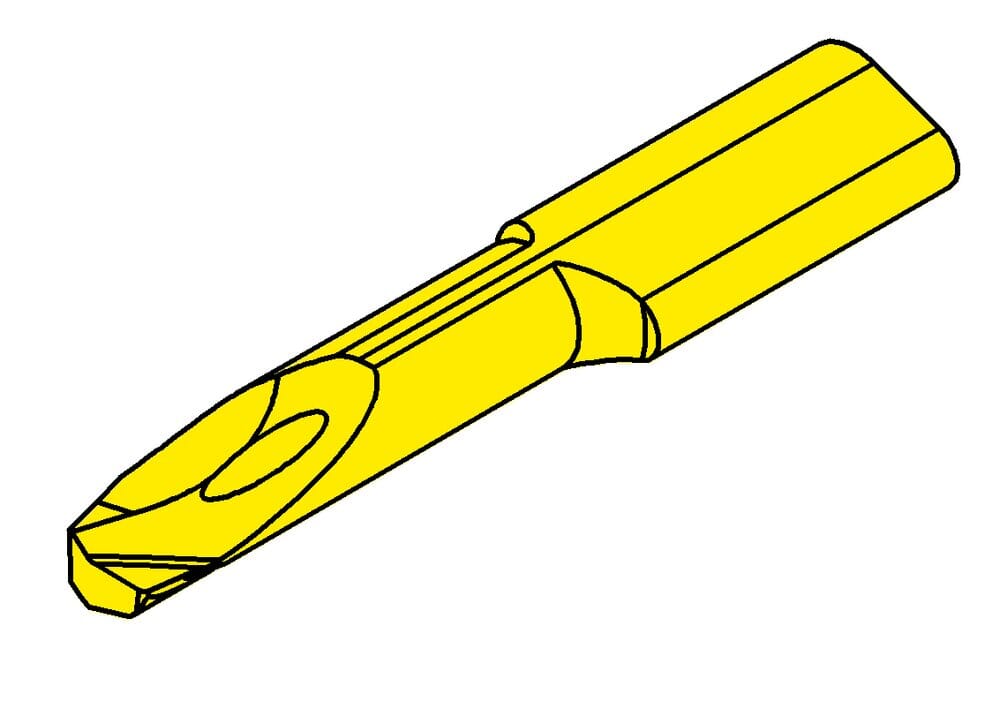

HORN Insert L105.1023.005.1.5 TH35 for Turning
Please note:Technical instructions
Cutting edge count (CEDC)
1
Dimension a at working width (WFA)
4.7 mm
Funktional width (WF)
2.8 mm
Corner radius (RE)
0.05 mm
Cutting edge angle major right hand (PSIRR)
11 °
Cutting edge angle major left hand (PSIRL)
8 °
Overall length (OAL)
25 mm
Usable length (LU)
10 mm
Minimum bore diameter (DMIN)
5 mm
Cutting depth maximum (CDX)
0.15 mm
Body diameter (BD)
7 mm
