L105.2123.2.5 EG35
Insert
Part number L105212325EG35

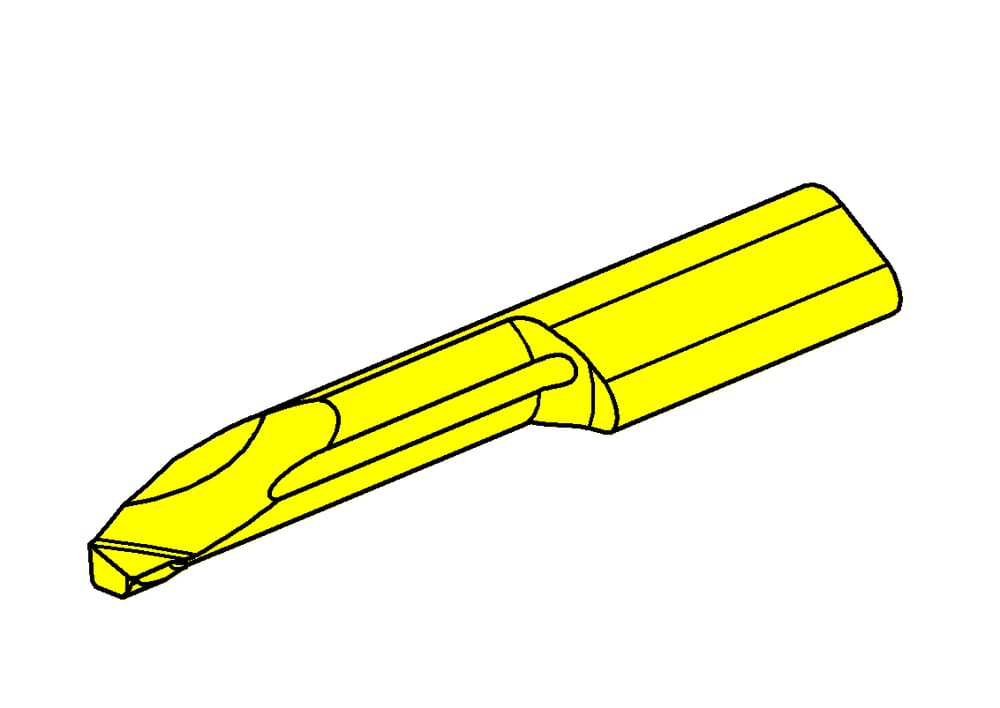

HORN Insert L105.2123.2.5 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

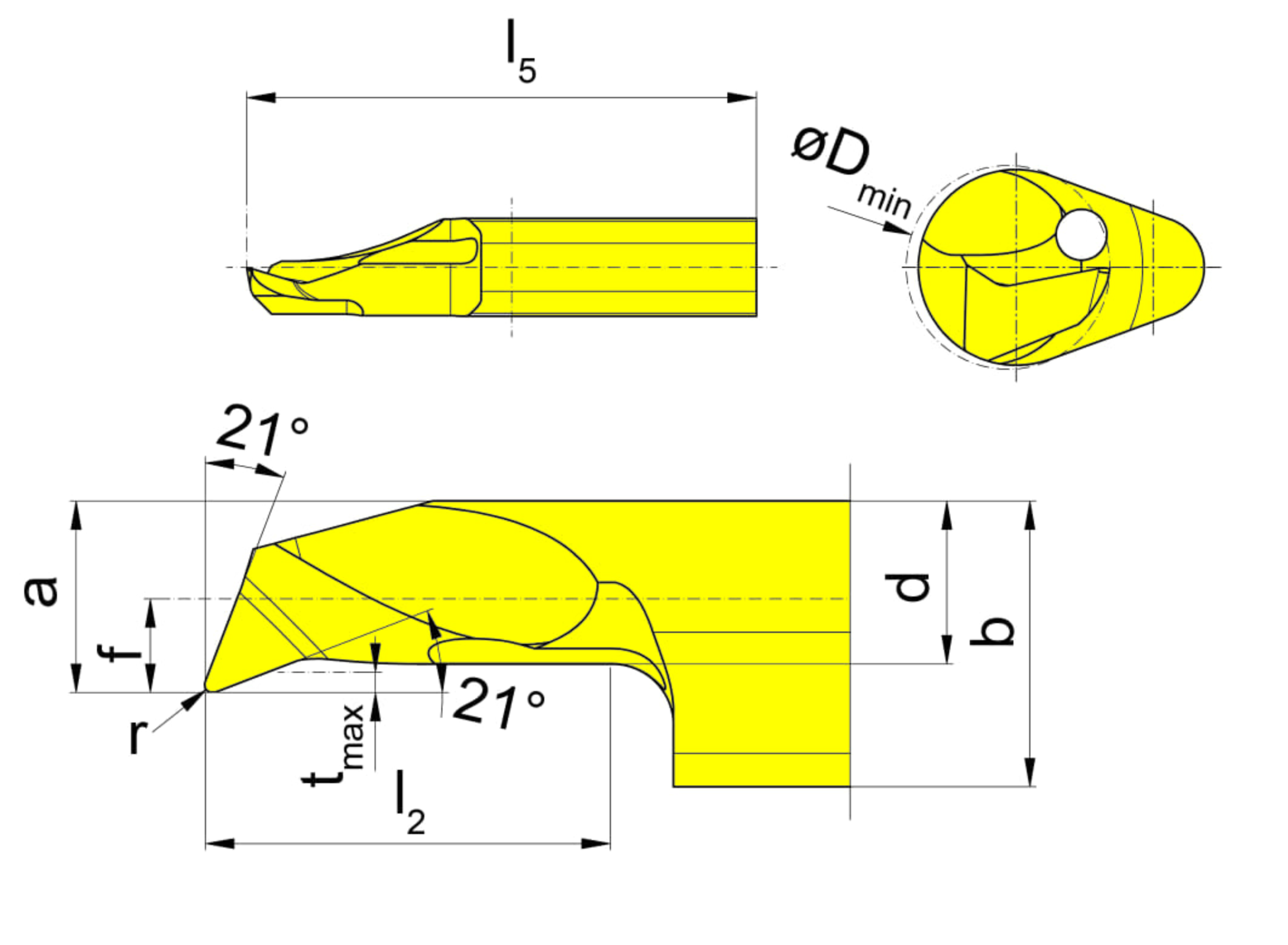

Smallest bore diameter (Dmin)
5
mm
Total length (l5)
30
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
4
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.5
mm
Head size (a)
4.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| L105212325_20230112_215420504.STP | Download |
| L105212325.DXF | Download |
| Download all files | |
