L105.BO.70.20.105.1 EG35
Insert
Part number L105BO70201051EG35

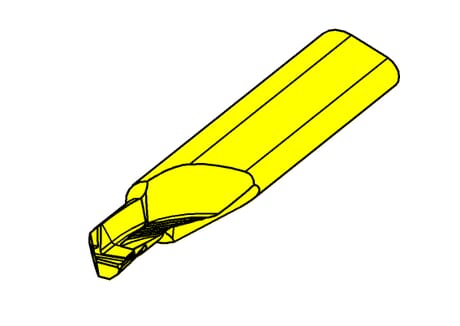

HORN Insert L105.BO.70.20.105.1 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

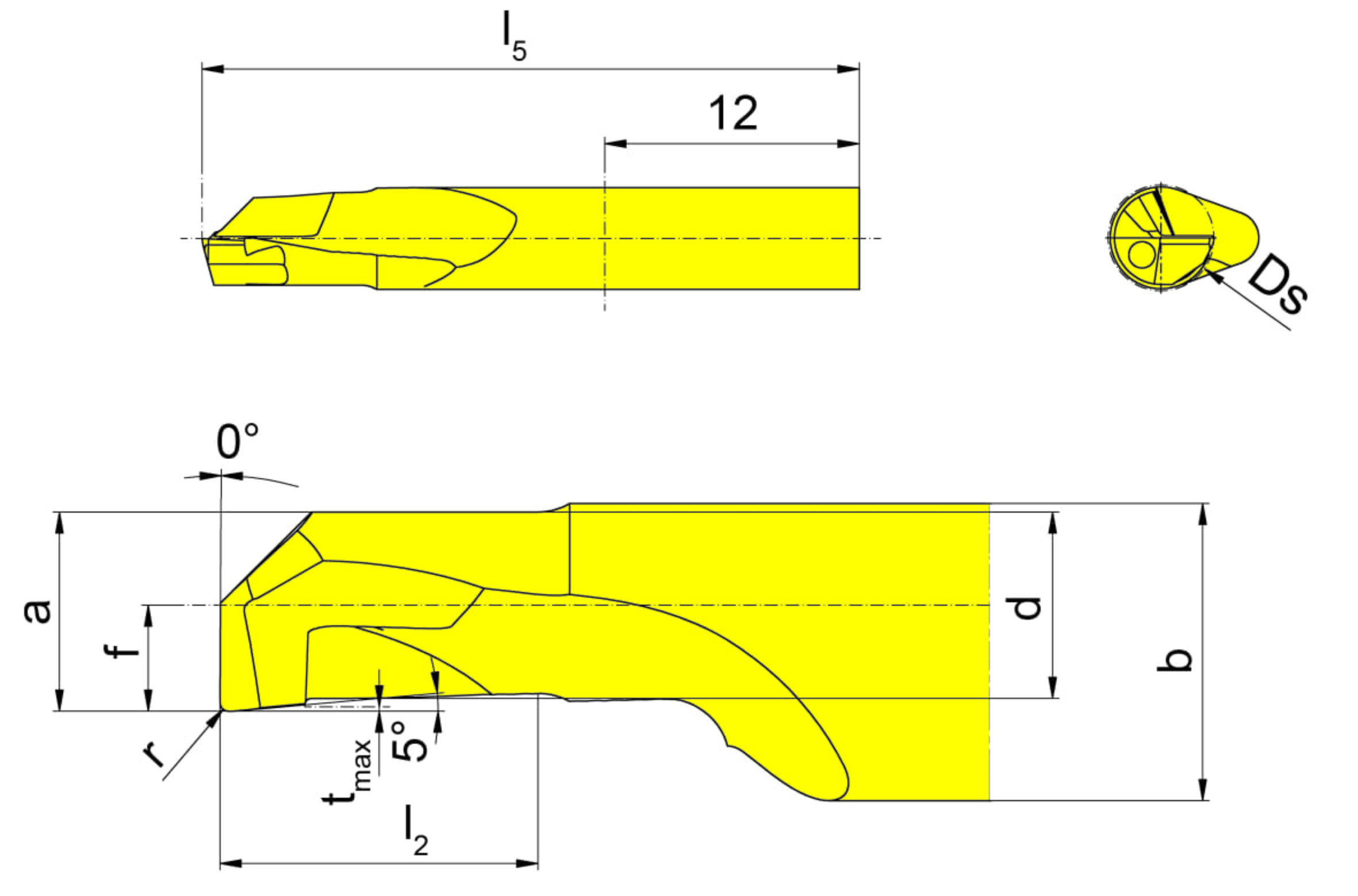

Smallest bore diameter (Ds)
7
mm
Total length (l5)
36
mm
Setting range radial (f)
3.5
mm
Neck diameter (d)
5.6
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.1
mm
Head size (a)
5.9
mm
Top radius (r)
0.2
mm
Neck length (l2)
10.5
mm
| Downloads | |
|---|---|
| L105BO70201051_20230112_221503675.STP | Download |
| L105BO70201051.DXF | Download |
| Download all files | |
