L105.VPM3.4.3 TH35
Insert
Part number L105VPM343TH35

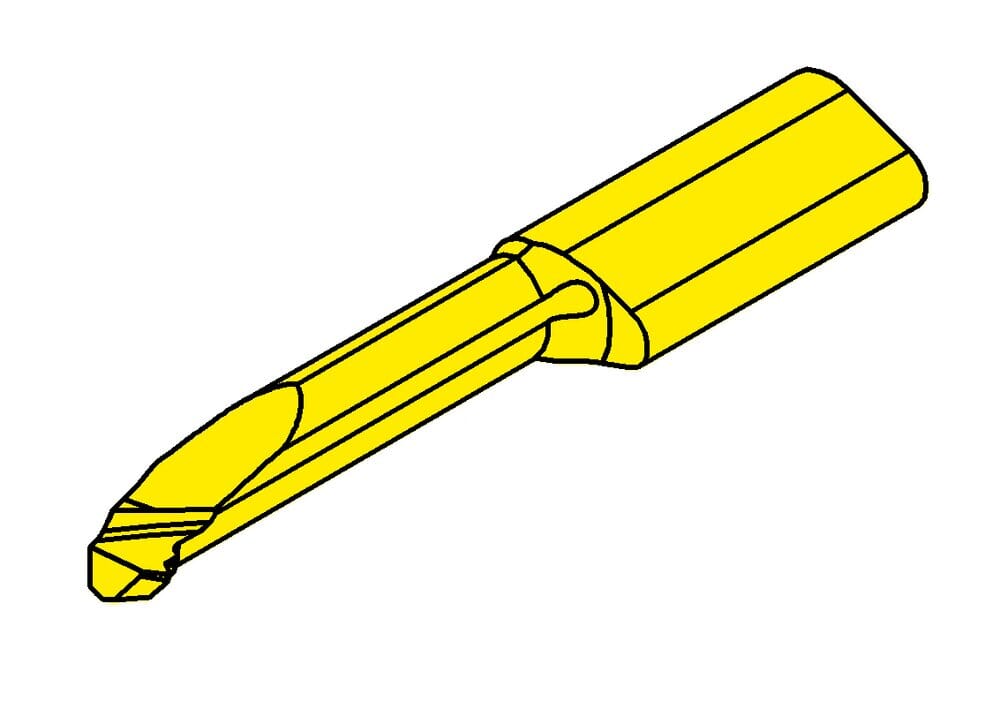

HORN Insert L105.VPM3.4.3 TH35 for Gewinden
Please note:Technical instructions
Neck diameter (d)
1.65 mm
Pitch (P)
0.5 mm
Smallest bore diameter (Dmin)
2.4 mm
Setting length (E)
0.3 mm
Cutting insert width (a)
2.2 mm
Setting range radial (f)
1.4 mm
Neck length (l2)
16 mm
Katalog_SSC
105123
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
35 mm
number-of-teeth
1 St.
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| Download all files | |
